Opis
Veoma kompaktno i ekonomično rješenje za jednostavnije aplikacije gdje je potrebno sakriti pojačalo.AMP523 daje 2x15W RMS @ 4 Ohm-a snage po kanalu.
Akcija!

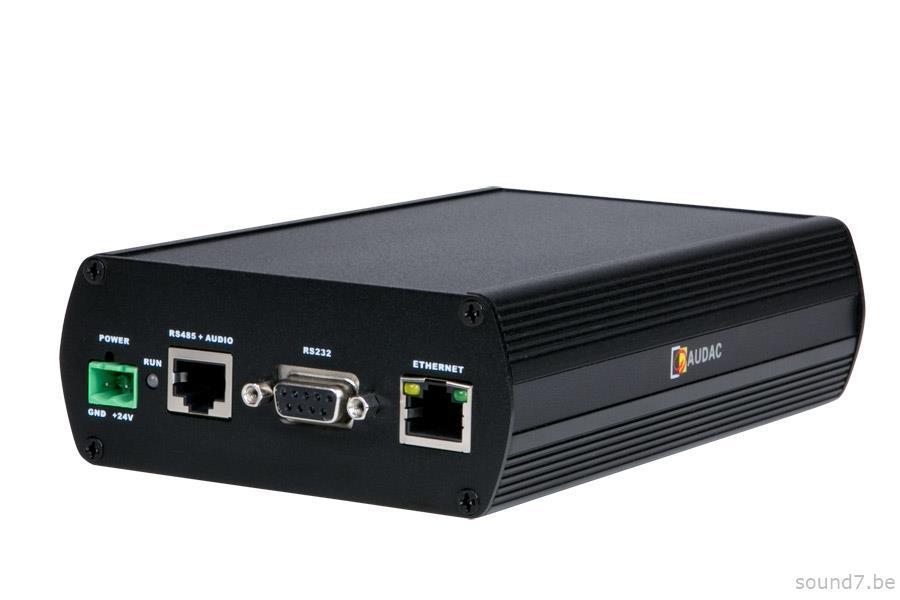

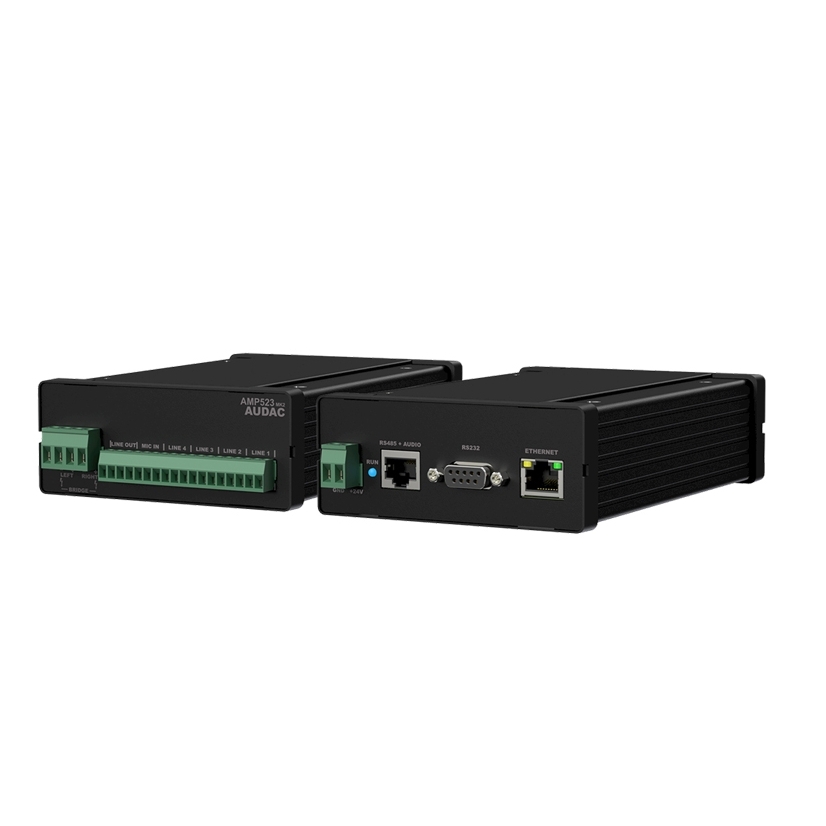

Audac AMP523 WEB stereo pojačalo
299,00KM
Mini stereo pojačalo sa integrisanom kontrolom preko interneta, četiri linijska ulaza i jednim mikrofonskim sa fantom napajanjem.
|
THD+N (@ 1 kHz) < 0.1% Crosstalk (@ 1 kHz) < -75 dB Signal / Noise > 95 dB Efficiency 87% Cooling Passive Protection Over heating DC Short circuit Limiter Control RS-232 TCP/IP RS-485 Socket Connections (AUDAC Touch™) 2 sockets Outputs Type 1 x Stereo Loudspeaker Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm) Power Supply 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) Inputs Unbalanced Stereo Type 4 x Stereo Unbalanced Line Balanced Stereo Connector 18-pin Euro Terminal Block (Pitch - 3.81 mm) Impedance 20 k? Sensitivity (1W/1m) -10 dBV ~ +4 dBV Balanced Microphone Type 1 x Balanced Microphone Connector 18-pin Euro Terminal Block (Pitch - 3.81 mm) Impedance 47 k? Sensitivity (1W/1m) -45 dBV ~ -20 dBV Other Type 1 x RS-485 + Differential audio Connector RJ45 Type 1 x RS-232 Connector SUBD9 Type 1 x Ethernet Connector RJ45 Power Consumption Standby < 3.0 W (PSD242 included) RMS Power @ 4 ? Stereo 2 x 15 W @ 8 ? Stereo 2 x 7.5 W Satellite @ 8 ? Bridge 30 W PRODUCT FEATURES Dimensions 108 x 44 x 165 mm (W x H x D) Weight 0.81 kg Accessories Included PSD241 - Power supply 24V / 1.67 A (Efficiency Level V) Optional Wall Controller (MWX45) WMI18/22 & WLI18/22 Wall input unit MBS1xx Wall mounting brackets TR3030 100V Transformer 30 W |
Brand
Audac
