Opis
Napredna DSP skretnica sa šest balansiranih XLR izlaza
Parametrički EQ, 31-pojasni Graphic EQ, Delay, Routing, skretnica (X-Over), 512 Taps FIR filteri, PA limiter, Termalna protekcija, Level, polaritet, signal generator… sve na najvišem audio nivou

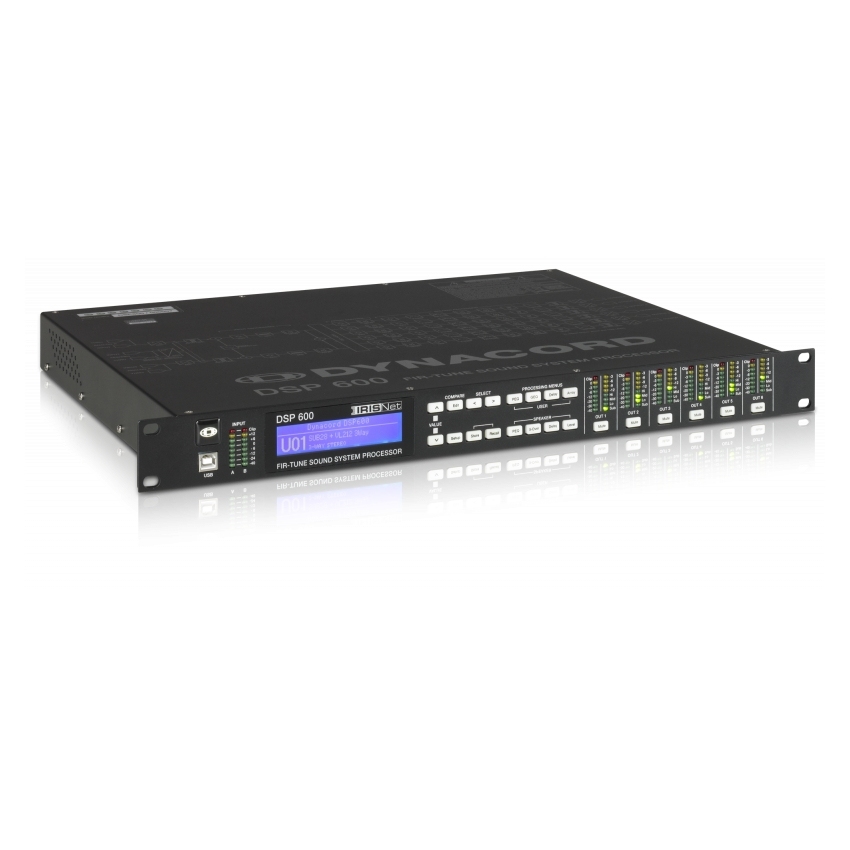

DSP 600 je digitalni procesor sa dva analogna i dva digitalna AES/EBU ulaza te šest analognih izlaza koji daje napredni audio procesing sa 24-bit AD/DA konverterima.
Procesor sadrži sofisticiranu skretnicu i kompletan speaker menagment sistem za maksimalnu efikasnost zvučničkog sistema.
Sa više od > 116 dB dinamičkog opsega, DSP 600 se nalazi u društvu najozbiljnijih skretnica za visoku produkciju zvuka. THD izobličenje je ispod 0,002 %, a sa IIR filterima i 512-tap FIR filterima visoke rezolucije DSP 600 drži ozbiljne standarde u svijetu procesinga zvuka. IRIS-net umrežavanje omogućava kontrolu najsofisticiranijih razglasnih sistema.
Dynacord DSP 600 specifikacija
• Mains Voltage: 100 to 240 V AC, 50 to 60 Hz
• Power Consumption: 25 W

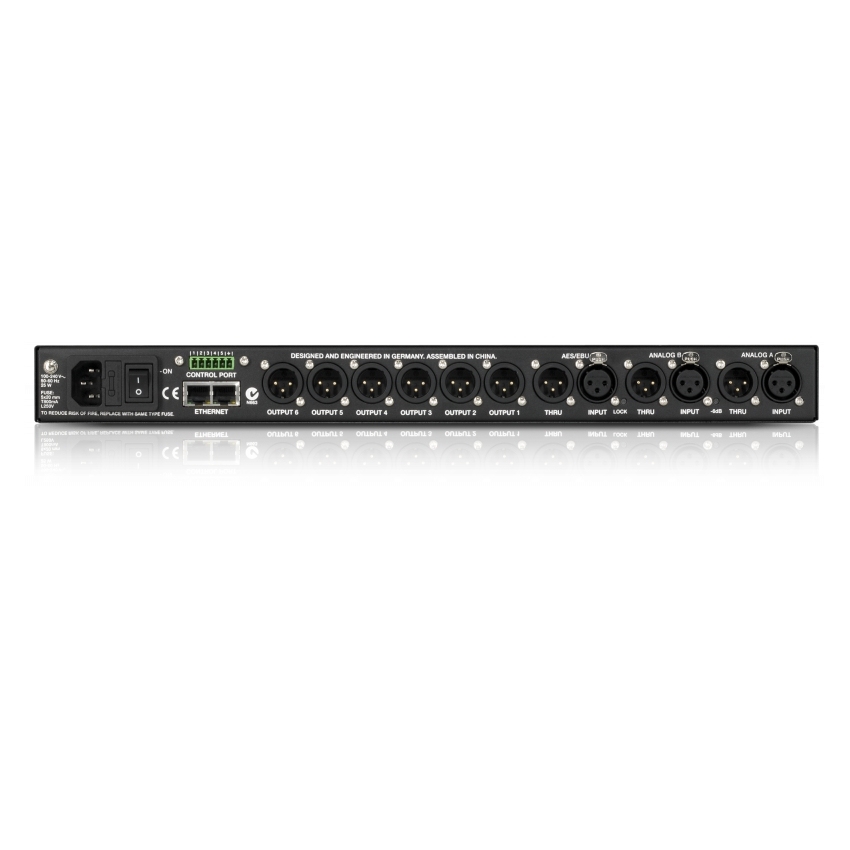

• Analog Audio Inputs: 2 x XLR IN, electronically balanced, 2 x XLR THRU OUT, electronically balanced
• Digital Audio Inputs: 1 x XLR AES/EBU IN, 1 x XLR AES/EBU THRU OUT
• Digital Audio Format: AES3, 32 kHz to 192 kHz sample rate
• Nominal Input Voltage: 1.55 V / +6 dBu
• Maximum Input Voltage (with -6dB PAD engaged): 17.3 V / +27 dBu
• Input Impedance: 10 kOhm
• Common Mode Rejection: -85 dB @ 1 kHz (typical)
• A/D Conversion: 24-Bit Sigma-Delta
• Analog Audio Outputs: 6 x XLR OUT, electronically balanced
• Nominal Output Voltage: 1.55 V / +6 dBu
• Maximum Output Voltage: 8.7 V / +21 dBu
• Output Impedance: 50 Ohm
• D/A Conversion: 24-Bit Sigma-Delta
• Frequency Response: 20 Hz to 22 kHz (+/-0.5 dB)
• THD+N < 0.002 % (band limited 22 Hz to 22 kHz)
• Dynamic Range: 116 dB (A-weighted)

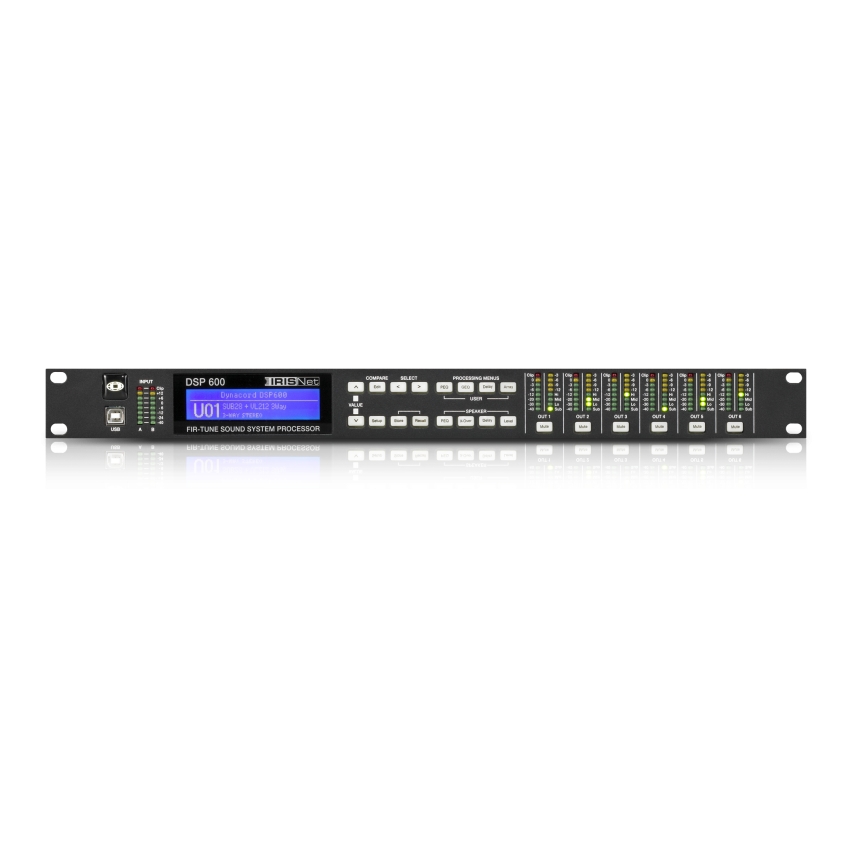

• USB: USB Type B on front panel (PC Interface)
• Ethernet: 2 x RJ-45 ports, 100 MB, Integrated Switch
• Control Port: 1 x 6-pole Euro block, Software Configurable for Preset Recall
• Sample Rate: 48 kHz
• Data Format: 24-Bit
• Internal Processing: 48-Bit Double Precision
• Signal Processing: Parametric EQs, 31 band Graphic EQs, Delays, Routing, X-Over, 512 Taps FIR filters, PA limiter, Thermal protection, Level, Polarity, Signal generator
• Operating Temperature Range: 0 °C to 40 °C
• Dimensions (WxHxD): 483 x 356.1 x 43.6 mm
• Weight (Net): 4.8 kg
