HK Audio IL80CT ugradni zvučnik

99,00KM

Plafonski zvučnik, 8 ″ niskotonac i 0,75 ″ visokotonac u koaksijalnom rasporedu, sklopljivi transformator od 100 V sa pet različitih tapiranja, maks. 103 dB. SPL (10% THD), 47 Hz – 19 kHz (-10 dB), 1 x terminalna traka

SKU: 26342177 Kategorija:

Opis

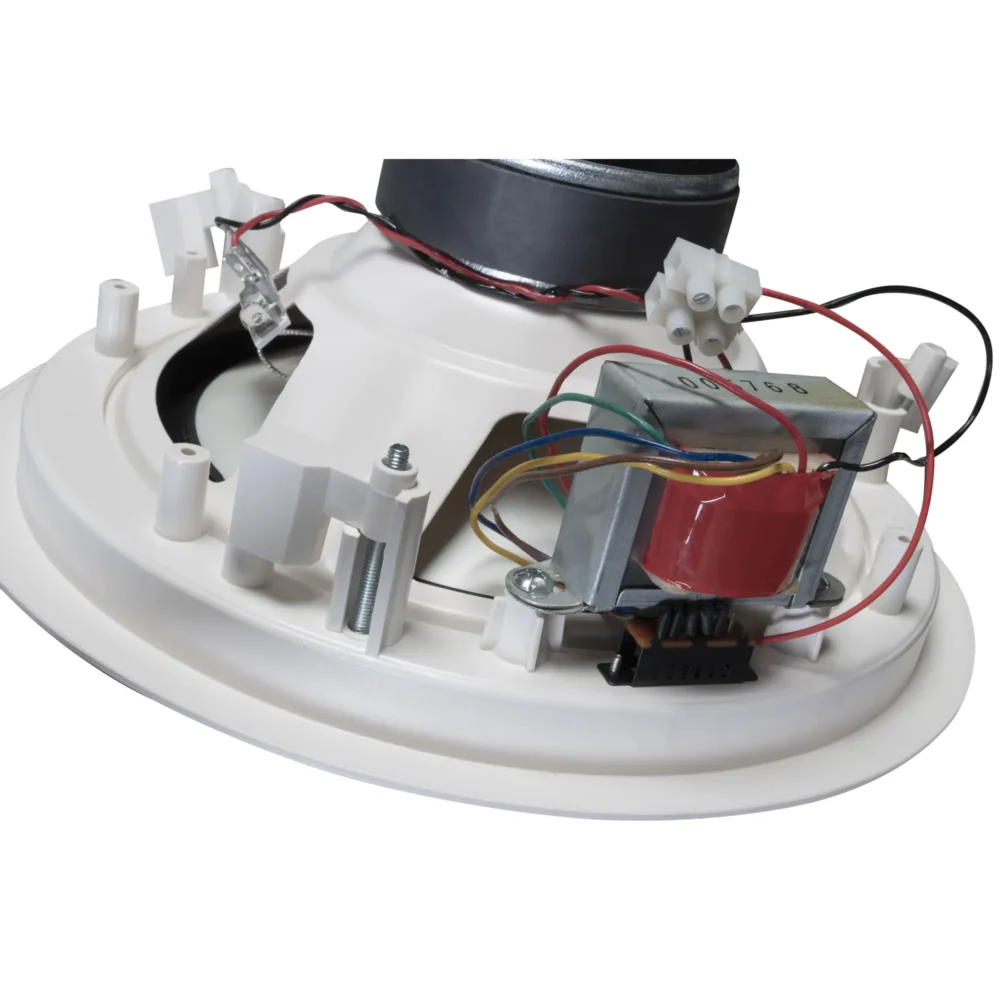

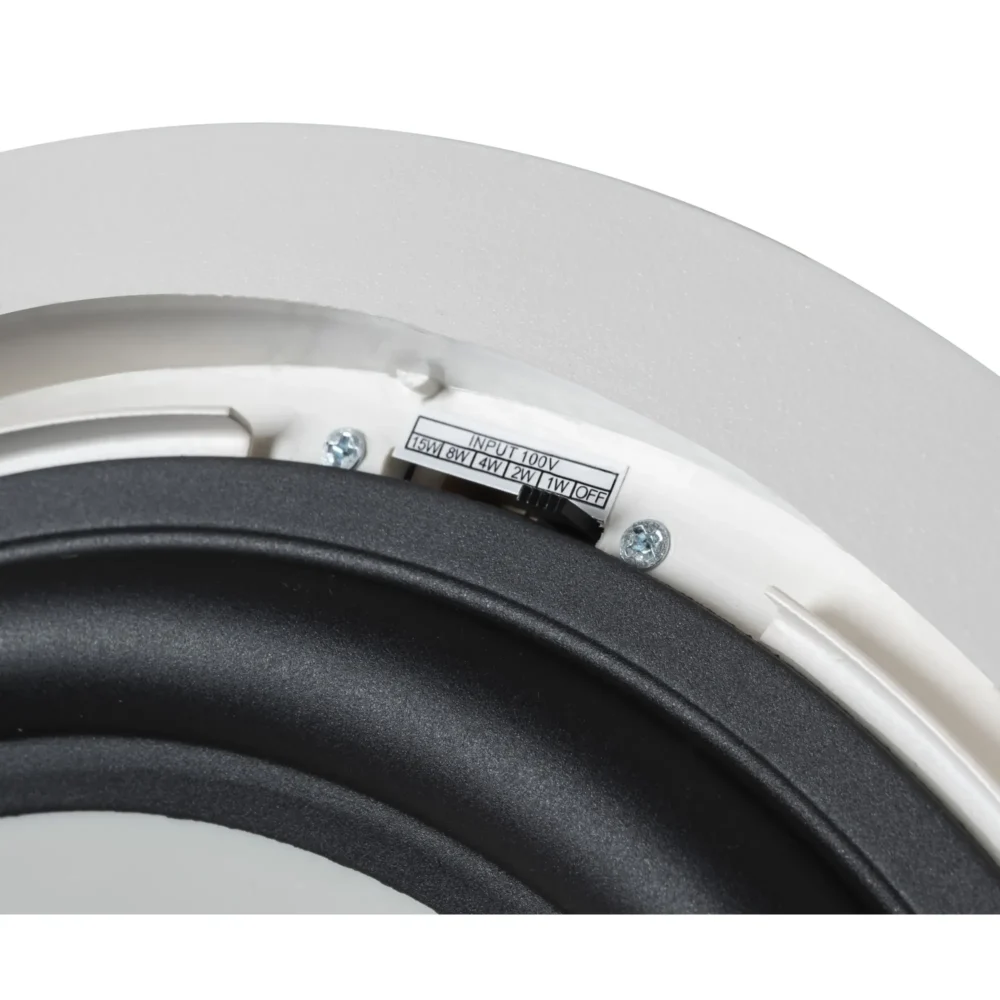

Plafonski zvučnik bez stražnje komore za plafone od 10 – 40 mm. Integrisani nosači za montažu i zaštitna rešetka koja se može spojiti. Opremljen sa 8 ″ niskotoncem i 0,75 ″ visokotoncem u koaksijalnom rasporedu, za kratke udaljenosti slušanja. Integrisani pasivni crossover i preklopni transformator od 100 V sa pet tapiranja (1 W / 2 W / 4 W / 8 W / 15 W). Standardna završna obrada je bijela, moguće je ponovno bojanje.

Specifikacija
Specifikacija Power tap low impedance 60 W
Power tap 1 at 100 V 1 W
Power tap 2 at 100 V 2 W
Power tap 3 at 100 V 4 W
Power tap 4 at 100 V 8 W
Power tap 5 at 100 V 15 W
Sensitivity 1 W/1 m (full space) 86 dB
Frequency response +/- 3 dB (processed) 55 Hz - 19 kHz
Frequency response -10 dB (processed) 47 Hz - 19 kHz
Max. SPL @ 10 % THD (EN 60268-21, full space) 103 dB
Directivity (horizontal x vertical) 80° circular
Electrical impedance 8 ohms (low impedance), 10000/5000/2500/1250/666 ohms (100 V taps)
Low/mid transducer 1 x 8" with ferrite magnet
High frequency driver 1 x 0.75" with neodymium magnet, coaxial to LF transducer
Crossover/cut-off frequency integrated passive crossover, 3000 Hz
DSP filters none
Connections 1 x terminal strip
Mounting points integrated mounting clamps, for ceiling thicknesses 10 - 40 mm
Cabinet material Plastic
Front grille Metal grille
Finish Plastic smooth, white
Protection class (IP code EN 60529) not specified
Optional accessories none
Dimensions (W x H x D) 245 mm outside diameter, 180 mm installation diameter, 70 mm installation depth
Weight 1.4 kg

Brand

HK Audio
