Synthesis
Type: Analog
Polyphony: 1 voice
Synthesis structure: 2 VCO, Noise generator, 1 VCF, 1 VCA, 2 EG, 1 LFO
VCO variable shape waveforms: Triangle, Sawtooth, Pulse with variable pulse width
VCF: 2-pole resonant multimode filter with Cutoff, Resonance, Env Amount, Drive
LFO: 7 shapes (Sine, Triangle, Square, Saw Up, Saw Down, Random, Sample & Hold), Rate
Modulation Destinations: Amp, Pitch, Filter, PWM, Waveshape (PWM and Waveshape via MIDI CC)
EG: 2 for Filter and Amplitude (full ADSR is available via MIDI)
Preset
100 Presets (20 factory non-writable, 80 user)

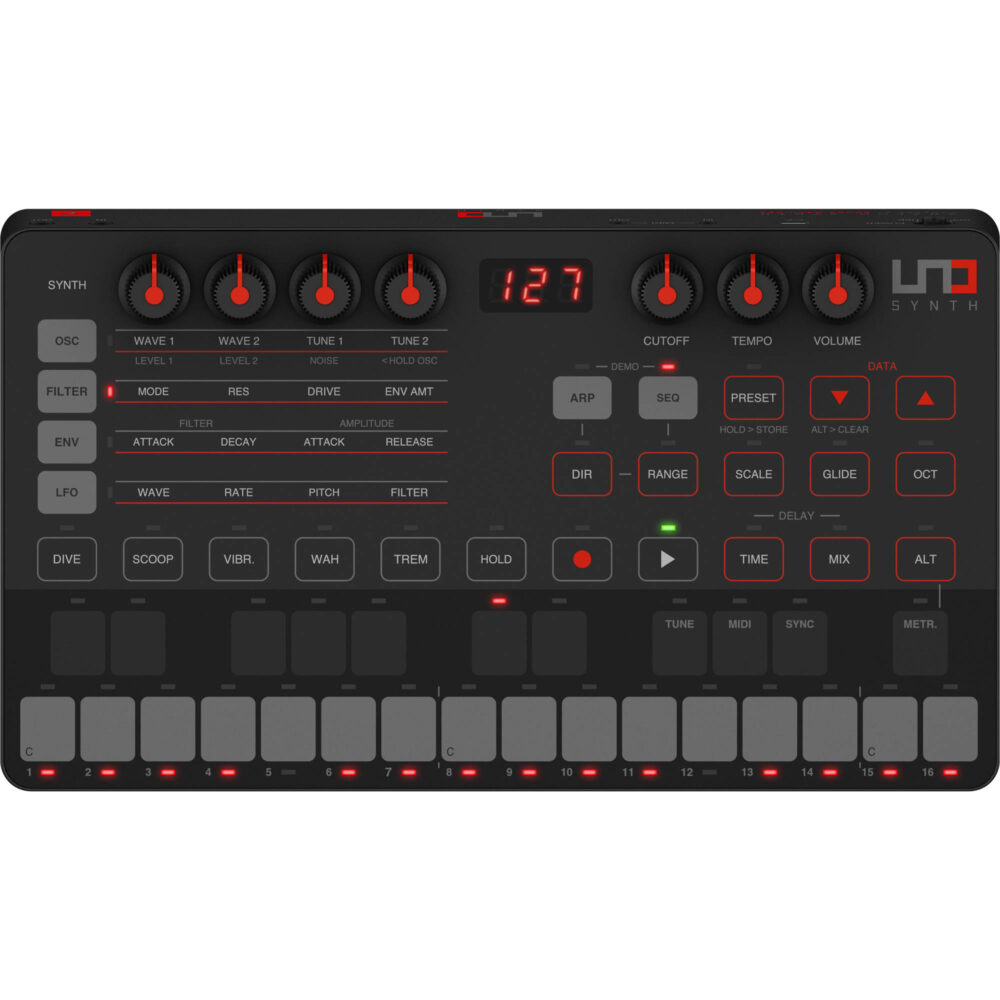

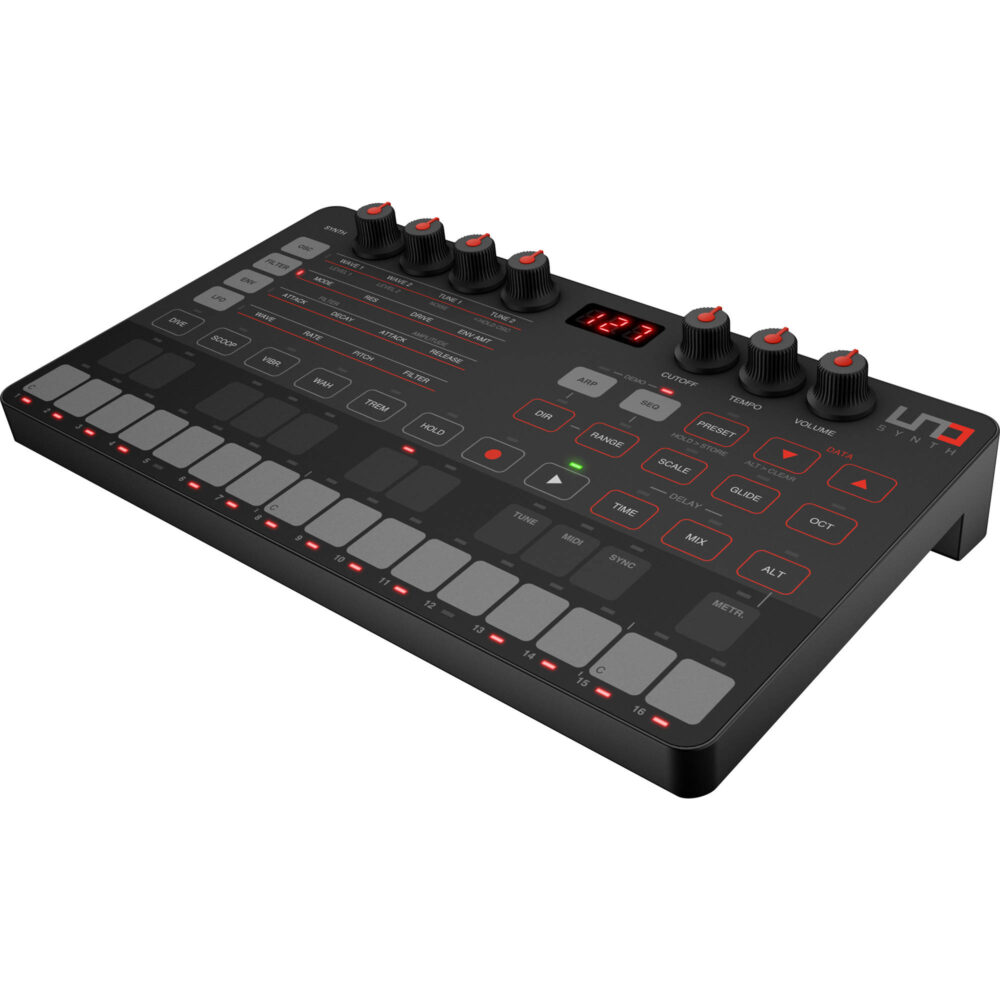

Keyboard and controls
7 Knobs (4 matrix, 3 fixed)
13 Selectable scales (Chromatic, Major, Minor, Major Pentatonic, Minor Pentatonic, Major Blues, Minor Blues, Harmonic Minor, Mixolydian, Dorian, Klezmer, Hungarian Gypsy, Spanish Gypsy, Japanese, South-East Asian)
Sequencer
16-step sequencer
Real-time and step recording with parameter recording
Real-time parameter recording per-step
3 directions: Forward, Backward, Forward and Backward
Selectable length between 1 and 16 steps
Arpeggiator
10 Mode Arpeggiator
4 octave range
Hold control
Effects
Delay
Dive, Scoop, Vibrato, Wah, Tremolo

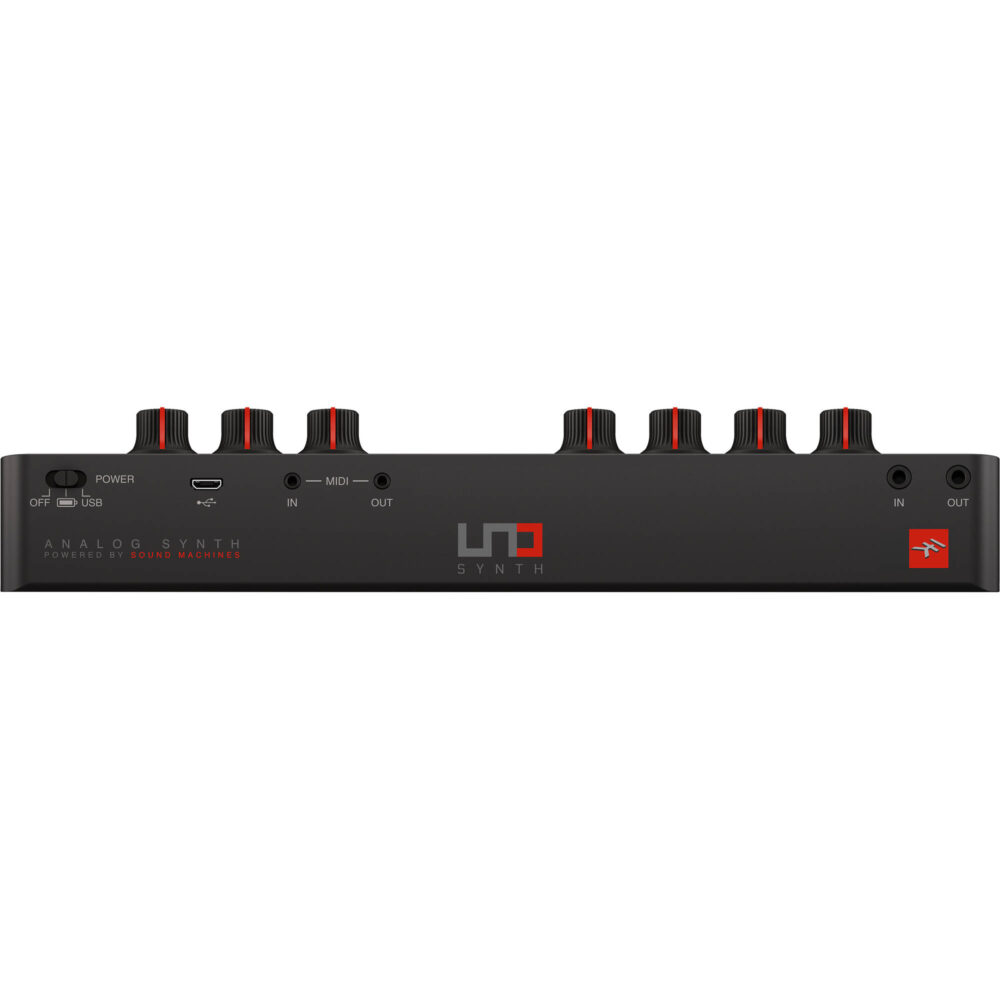

Connections
Audio Out: Mini-jack 3.5mm stereo (mono summed)
Audio In: Mini-jack 3.5mm stereo (mono summed)
2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
1 Micro USB*
Power
4x AA Batteries (Alkaline, Ni-Mh)

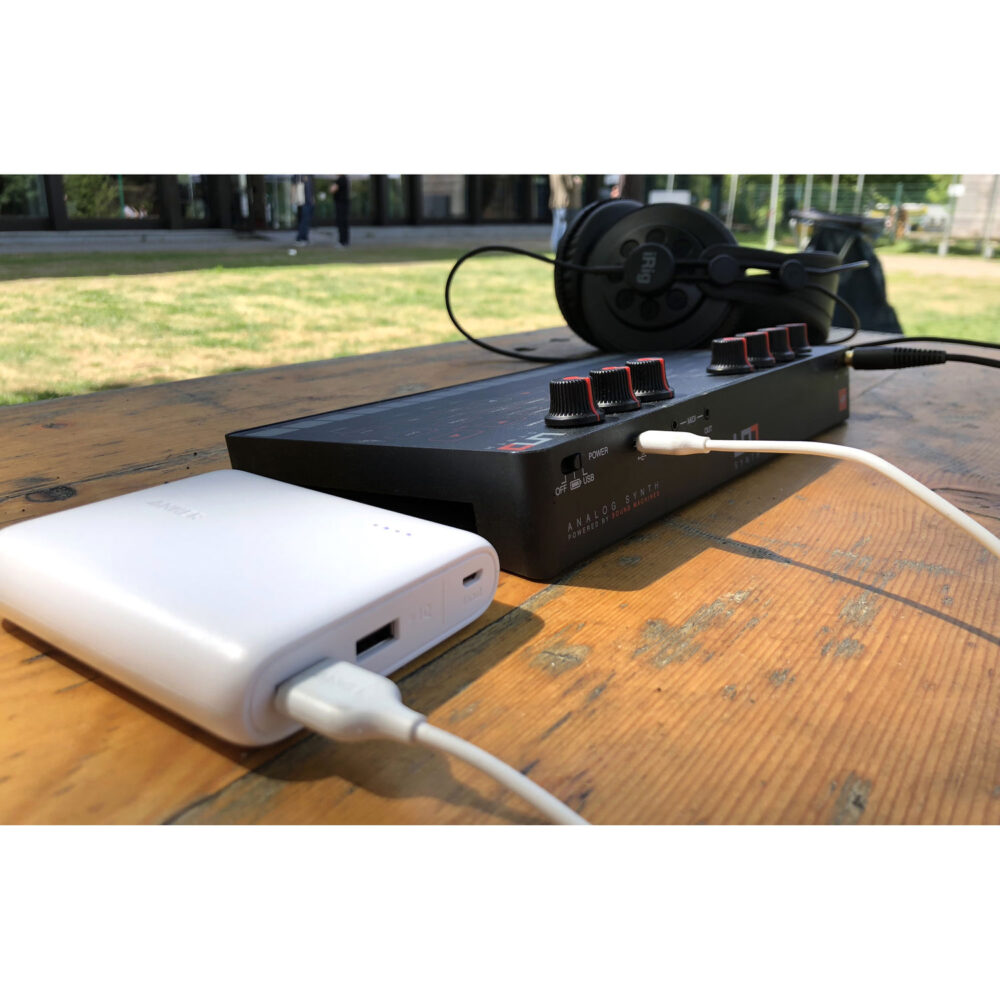

Micro USB connector
Package includes

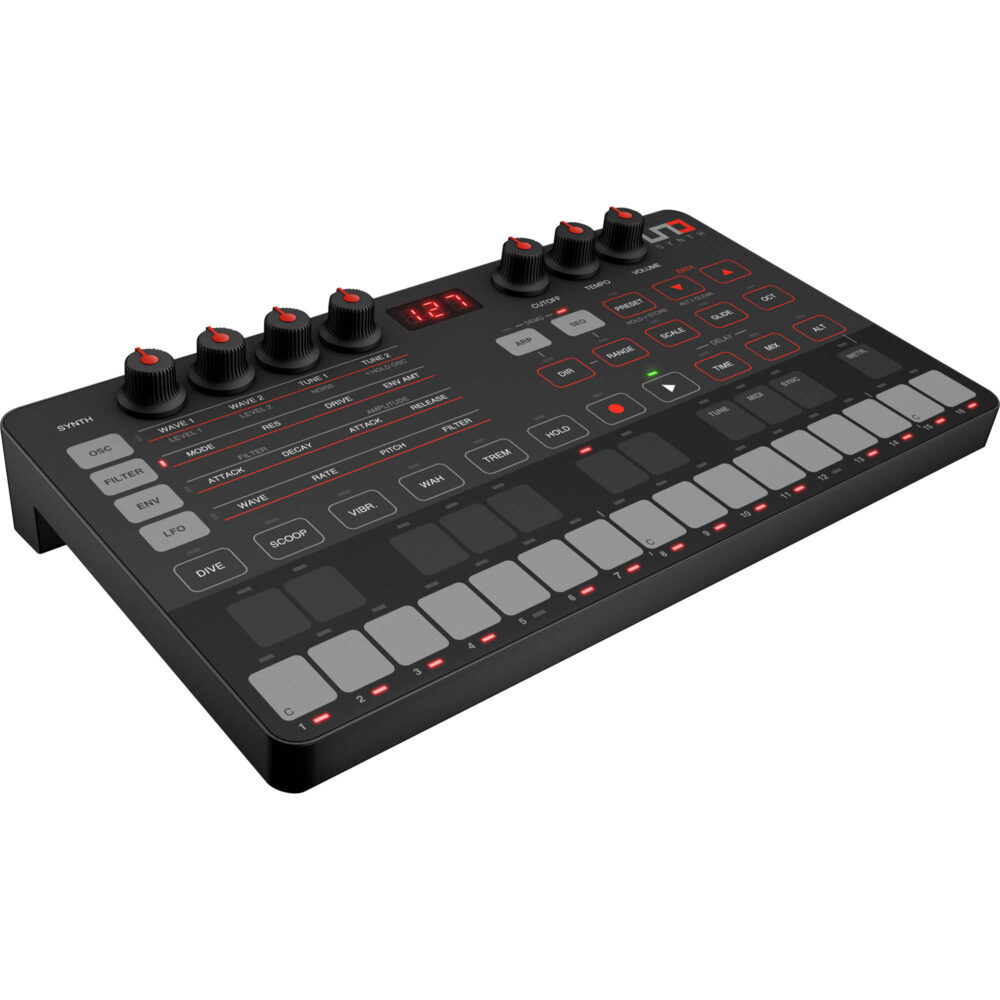

UNO Synth
1x Micro USB to USB cable
2x MIDI jack 2.5mm to DIN cables
4x AA batteries (Alkaline)

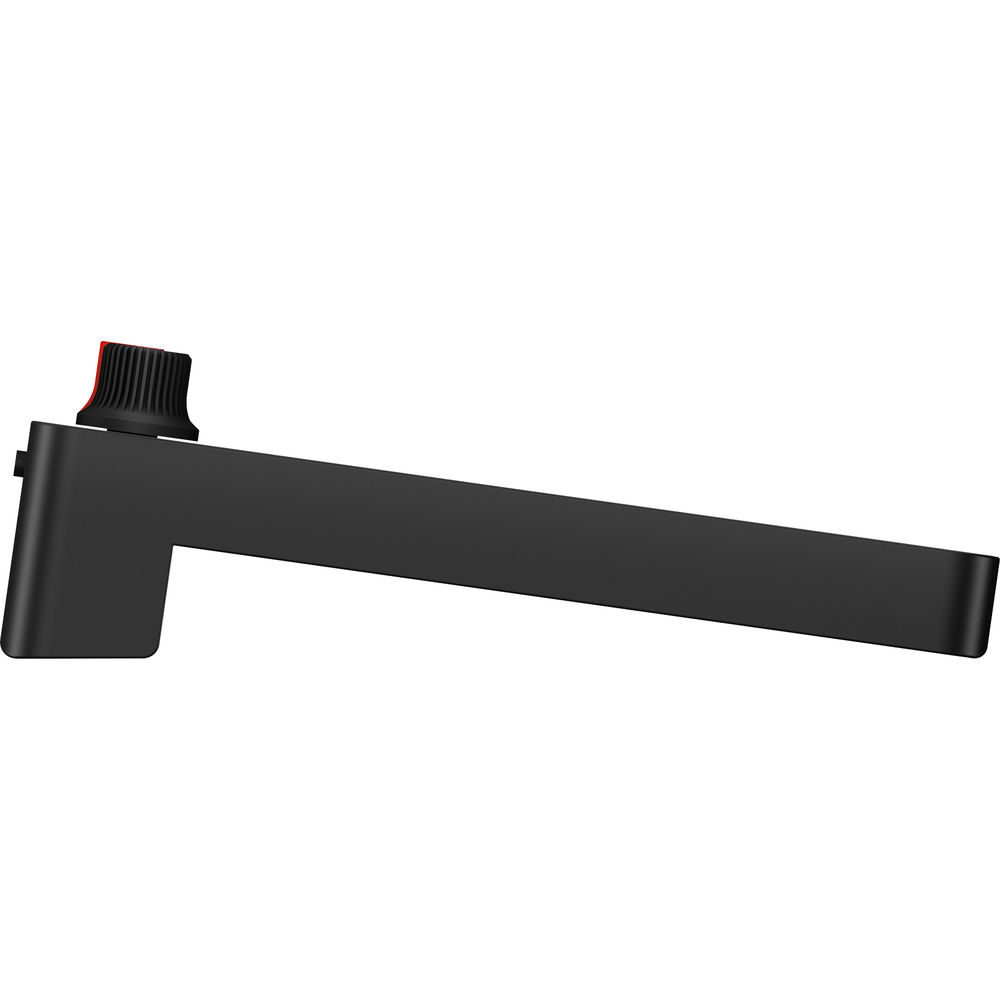

Dimensions
Size: 25.6cm/10.1" x 15cm/8.9" x 4.9cm/1.93"
Weight: 400g/14.1oz (excluded batteries) |
