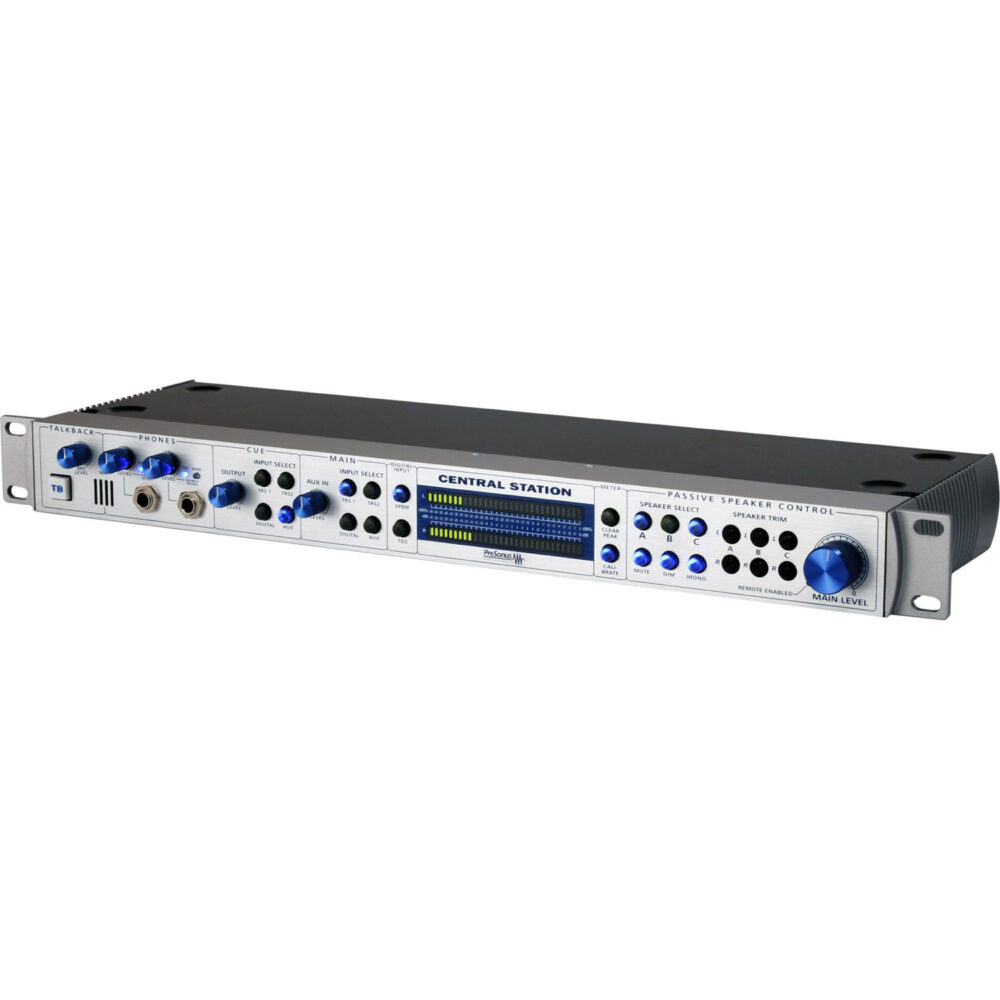

PreSonus Central Station kontroler

1.495,00KM

Profesionalni, pasivni kontroler monitora  audiofilskog kvaliteta pogodan za komercijalne studije, projektne studije i okruženja za emitovanje.

SKU: 51632200 Kategorije: , ,

Opis

Centralna stanica je dizajnirana da osigura istinsku transparentnu putanju signala i maksimalizira dinamički opseg, frekvencijski odziv i prostor za glavu, istovremeno smanjujući buku i obojenost. Kontroler koristi visokokvalitetne pasivne komponente (bez op-pojačala ili IC-a), uključujući vojnu klasu, toleranciju od 1%, otpornike od metalnih filmova, potenciometre s više elemenata i izdržljive konektore za pružanje profesionalnih zvučnih performansi. Kućište 1 RU sadrži kontrole za tri seta monitora, dva izlaza za slušalice sa velikim pojačanjem, ugrađeni mikrofon za povratni razgovor, četiri seta ulaza, dodijeljeni znak i glavni izlazi i precizni dvostruki LED zaslon od 30 segmenata s vrhunskom funkcijom zadržavanja .

Specifikacija
Specifikacija Connectors Analog Inputs
TRS1 (L/R): 2 x 1/4" / 6.35 mm
TRS2 (L/R): 2 x 1/4" / 6.35 mm
Aux (L/R): 2 x RCA
Talkback Mic: XLR
Talkback Pedal: 1/4" / 6.35 mm

Digital Inputs
TOSLINK: Optical
SPDIF: RCA

Analog Outputs
Speaker A: 2 x 1/4" / 6.35 mm
Speaker B: 2 x 1/4" / 6.35 mm
Speaker C: 2 x 1/4" / 6.35 mm

Line Outputs
Cue: 2 x 1/4" / 6.35 mm
Main: 2 x 1/4" / 6.35 mm

Headphones: 2 x 1/4" / 6.35 mm

Console Remote Control: DB15 (proprietary)
Inputs
TRS Audio Input Type: 1/4" / 6.35 mm TRS passive-balanced
Input Impedance: 2-5 kOhms (speaker load and trim level dependent)
S/N Ratio: >140 dB
THD+N: <0.0005% (1 kHz @ 0 dBu)
Frequency Response: >1 MHz
Aux Type: RCA active-unbalanced
Input Impedance: 8 kOhms
S/N Ratio: >115 dB (1 kHz @ 0 dBu, unity gain)
THD+N: <0.002% (1 kHz @ 0 dBu, unity gain)
Frequency Response: 10 Hz to 50 kHz, -0.5 dB
Gain Range: -90 dB to +20 dB
SPDIF Types: RCA 75 Ohms coax and TOSLINK optical
Dynamic Range: 117 dB
THD+N: 0.0025% (1 kHz @ -1 dBfs)
Maximum Output: +18 dBu (active-balanced)
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Input Meters Type: Dual 30 segment LED with peak hold
Range: -48 dB to +18 dB (-66 dBfs to 0 dBfs)
Accuracy: >0.25 dB
Frequency Range: 10 Hz to 22 kHz
Calibrate Range: ±18 dB
Outputs
Speaker Type: 1/4" / 6.35 mm TRS passive-balanced
Type-Mono Activated: 1/4" / 6.35 mm TRS active-impedance balanced
Trim Range: -90 dB to 0 dB
Main Level Range: -90 dB to 0 dB
Dim Attenuation: -30 dB
Main Outputs Type: 1/4" / 6.35 mm TRS active-balanced
Output Impedance: 51 Ohms
THD+N: <0.0025%
Frequency Response: 10 Hz to 50 kHz, -0.5 dB
Cue Type: 1/4" / 6.35 mm TRS active-impedance balanced
Output Impedance: 51 Ohms
THD+N: >0.003% (1 kHz @ 0 dBu)
Frequency Response: 10 Hz to 50 kHz, -0.5 dB
Gain Range: -90 dB to 0 dB
Dim Attenuation: -30 dB (talkback activated)
Headphones Type: 1/4" / 6.35 mm TRS active stereo
Maximum Output: 150 mW/channel @ 60 Ohms load
THD+N: 0.015% (150 mW/channel @ 60 Ohms load)
Frequency Response: 10 Hz to 50 kHz, +1 dB
Talkback Microphone
Dynamic Microphone Dynamic Microphone Input
Type: XLR female balanced
Input Impedance: 2400 Ohms
Internal Microphone Type: Electret condenser
Sensitivity: -42 dB
Microphone Preamplifier Gain Range: 15 to 55 dB
General Specifications
Power Type: External A/C transformer/internal linear
Power Consumption: 40 VA
Adapter Package Type: Molded plastic
Cable Length CSR-1 Cable: 12.0' / 3.7 m
Dimensions (W × H × D) Main Unit: 19.0 x 1.8 x 6.3" / 482.6 x 44.5 x 158.8 mm
CSR-1 Remote: 5.3 x 5.8 x 2.4" / 133.4 x 146.1 x 60.5 mm
Power Supply: 2.5 x 2.3 x 4.0" / 63.5 x 58.4 x 101.6 mm
Weight Main Unit: 5.0 lb / 2.3 kg
CSR-1 Remote: 1.3 lb / 0.6 kg
Power Supply: 2.5 lb / 1.1 kg

Brand

Presonus
