Opis
Visokoprecizni 192kHz dvokanalni AD/DA konverter

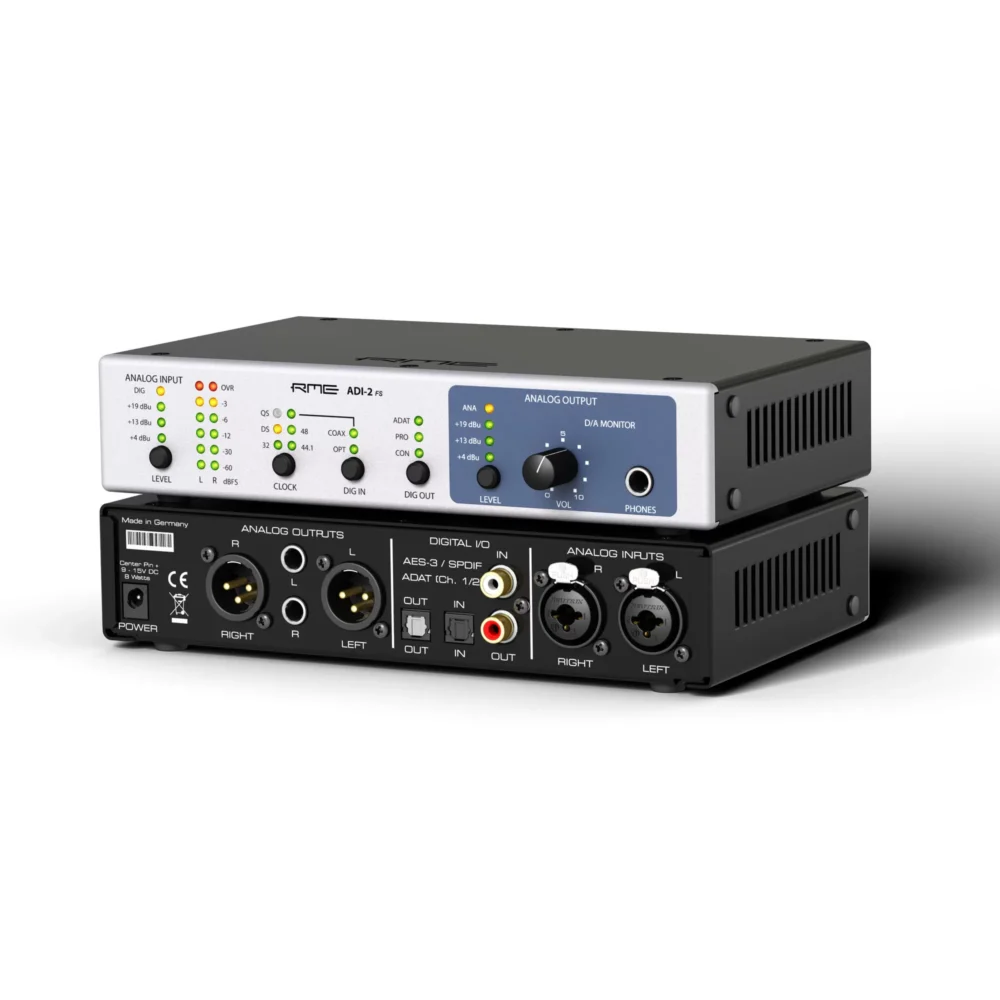

ADI-2 FS je kompaktan i veoma fleksibilan dvokanalni napredni AD/DA konverter. Uređaj nudi AD/DA konverziju prve klase sa i na SPDIF, AES i ADAT konekcije sa sample rate do 192kHz. NJegova sposobnost da radi sa SPDIF, AES i ADAT formatima ga čini super kompatibilnim za razne situacije.
Analogni i digitalni ulazi i izlazi

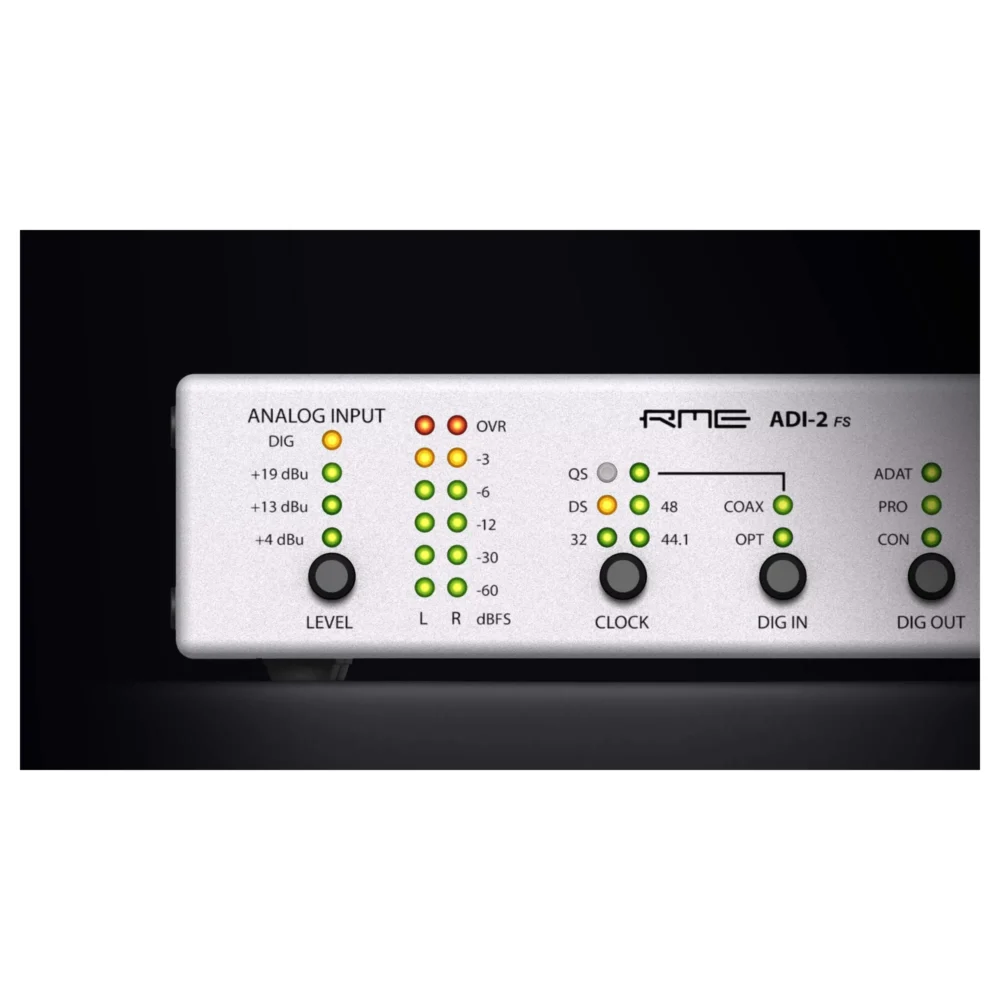

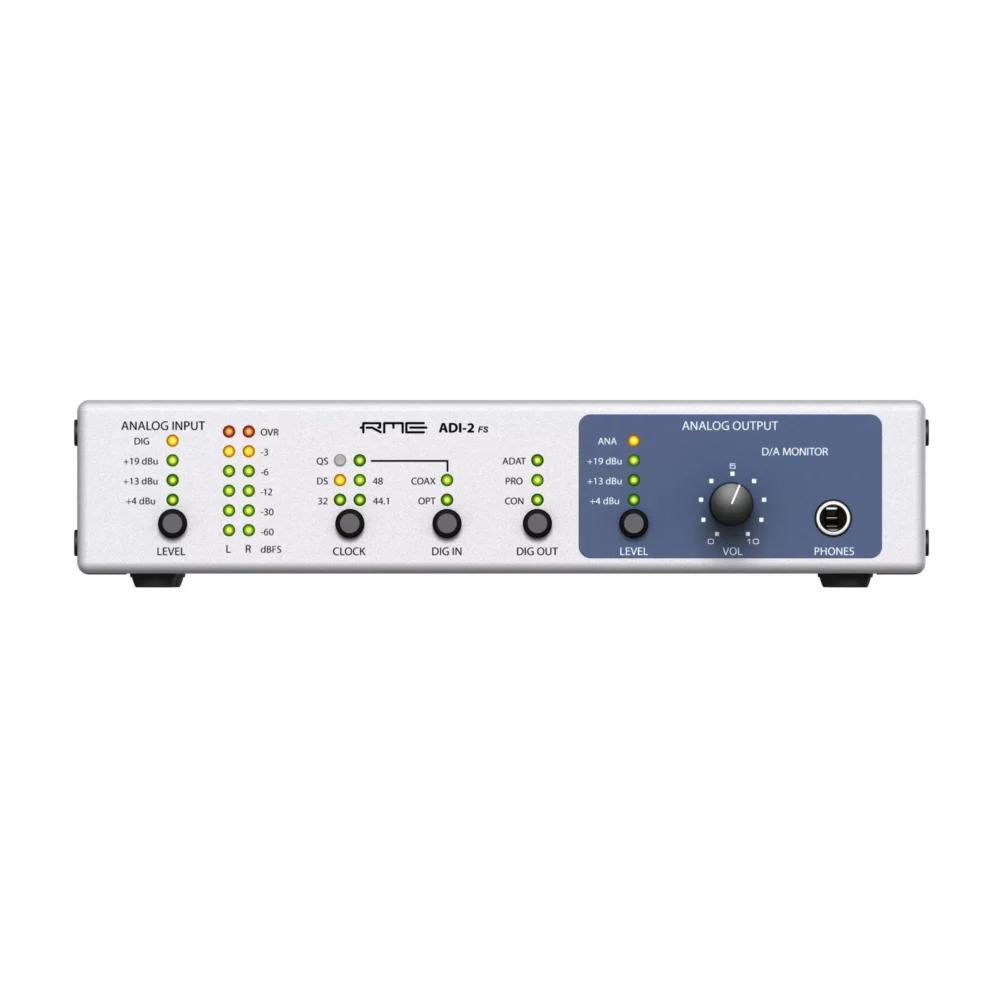

Balansirani analogni ulazi i izlazi, monitoring preko Headphone izlaza za slušalice, SteadyClock FS za optimalnu konverziju, trostepena hardverska kontrola ulaznog i izlaznog nivoa i dodatni D-D i A-A režimi pretvaraju ADI-2 FS u univerzani alat konverzije. Njegova pro-klasa zvuka ga stavlja u ravan sa premium konverterima.
Dva balansirana XLR/TRS ulaza, digitalni optički ADAT i koaksijalni SPDIF

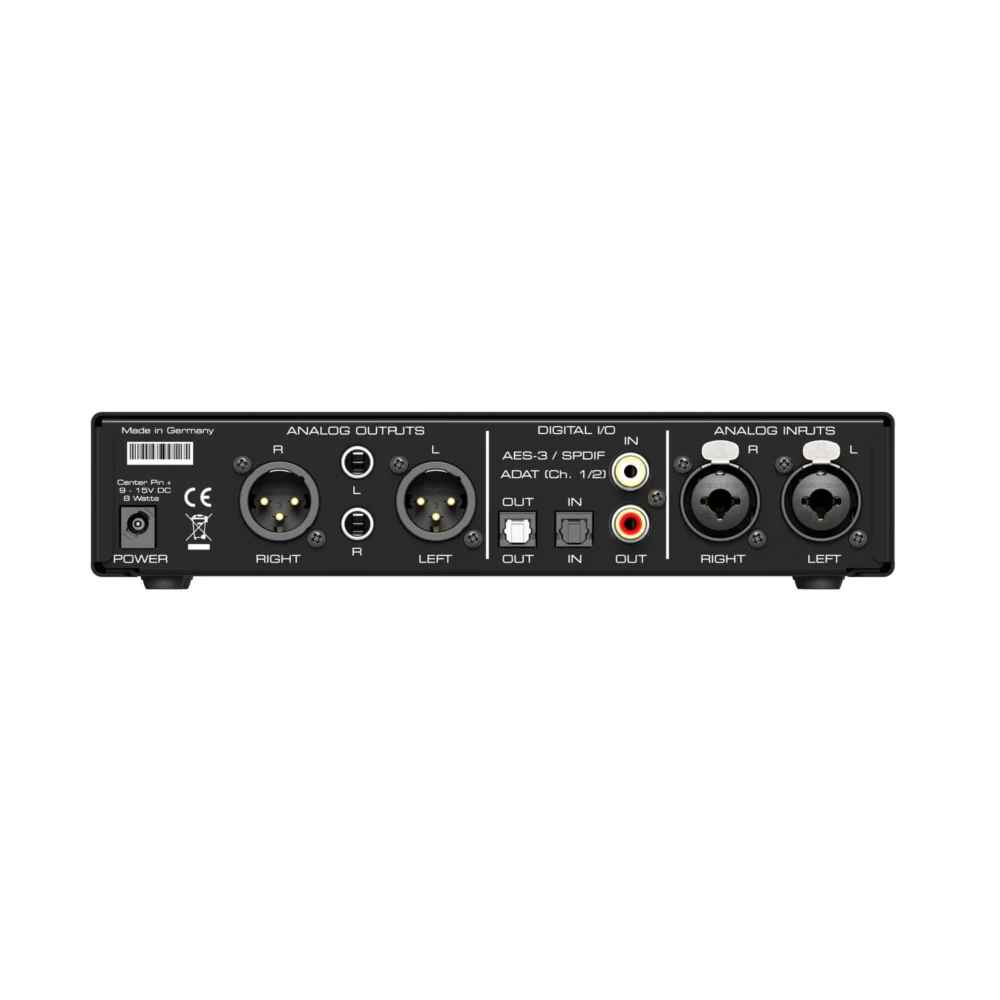

ADI-2 FS je opremljen sa dva servo-balansirana analogna linijska ulaza sa XLR/TRS kombo konektorima na kojima možete koristiti i balansirane i nebalansirane konekcije. Tu je podesivo headphone pretpojačalo za slušačlice na prednjoj ploči i ADAT kompatibilni optički SPDIF ulaz i izlaz, te koaksijalni SPDIF ulaz i izlaz (RCA, AES/EBU).

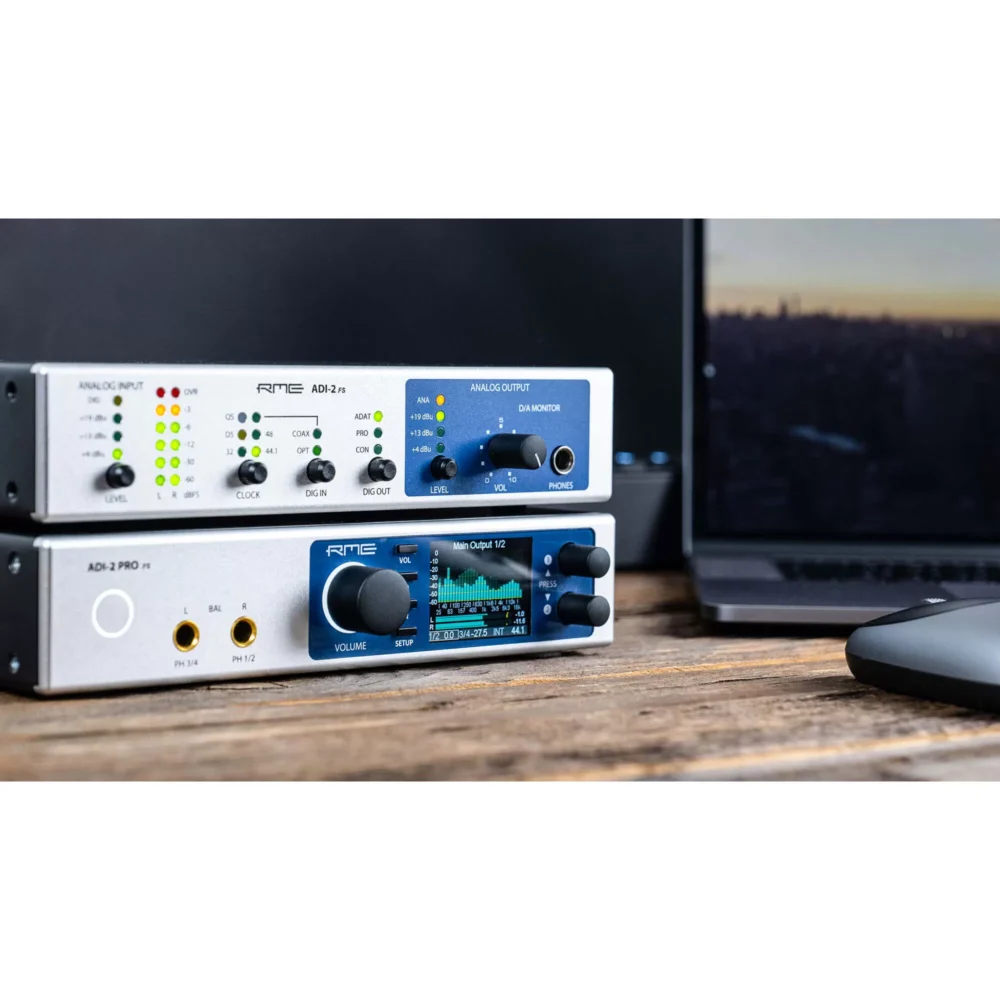

Analogni ulazi koriste napredna strujna kola razvijena za ADI-2 Pro verziju konvertera, pa zbog toga raspolažu sa izuzetno malim šumom i izobličenjem signala sa veoma širokim frekvencijskim opsegom. Tri različita nivoa za ulazni i izlazni signal obezbjeđuju perfektnu analognu kompatibilnost sa drugim uređajima.
Specifikacija
ANALOG
AD
- Signal to Noise ratio (SNR) @ +19 dBu: 117 dB RMS unweighted, 121 dBA
- Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
- Frequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.5 kHz
- Frequency response @ 192 kHz, -1 dB: 2 Hz – 92.7 kHz
- THD @ -1 dBFS: -114 dB, 0.00015 %
- THD+N @ -1 dBFS: -112 dB, 0.00025 %
- Channel separation: > 110 dB
- Max Input Level AD: +19 dBu
- Input: XLR or 1/4″ TRS, electronically balanced
- Input impedance balanced: 36 kOhm, unbalanced: 18 kOhm
- Input sensitivity switchable: +4 dBu, +13 dBu, +19 dBu @ 0 dBFS
DA
- Signal to Noise ratio (SNR): 117 dB RMS unweighted, 120 dBA
- Frequency response @ 44.1 kHz, -0.1 dB: 10 Hz – 20.2 kHz
- Frequency response @ 96 kHz, -0.5 dB: 5 Hz – 44.9 kHz
- Frequency response @ 192 kHz, -1 dB: 3 Hz – 88 kHz
- THD @ -1 dBFS: -112 dB, 0.00025 %
- THD+N @ -1 dBFS: -110 dB, 0.00032 %
- THD @ -3 dBFS: -116 dB, 0.00016 %
- Channel separation: > 110 dB
- Max Output Level DA: +19 dBu
- Output: XLR balanced, 1/4″ TRS unbalanced/balanced
- Output impedance: XLR balanced 150 Ohm, TS unbalanced 100 Ohm
- Output level switchable: +4 dBu, +13 dBu, +19 dBu @ 0 dBFS
DA – Phones
as DA, except:
- Output: 6.3 mm stereo TRS, unbalanced
- Output impedance: 0.1 Ohm
- Output level at 0 dBFS, load 100 Ohm or up: +19 dBu (6.9 Vrms)
- Max power 32 Ohm load: 0.7 W per channel (0.01% THD, +16 dBu, 4.9 Vrms)
- THD 32 Ohm load @ +15 dBu: -110 dB, 0.0003 %
Mode ANA (Analog In to Analog Out)
- Signal to Noise ratio (SNR) @ +19 dBu: 123 dB RMS unweighted, 126 dBA
- Signal to Noise ratio (SNR) @ +13 dBu: 119 dB RMS unweighted, 122 dBA
- Signal to Noise ratio (SNR) @ +4 dBu: 112 dB RMS unweighted, 115 dBA
- Frequency response -0.5 dB: 1 Hz – 120 kHz
- THD+N @ +19 dBu: -116 dB, 0.00016%
- Channel separation: > 120 dB
- Maximum input / output level: +22 dBu
DIGITAL
- Clocks: Internal, ADAT In, SPDIF In
- Jitter suppression of external clocks: > 50 dB (2.4 kHz)
- Effective clock jitter influence on AD and DA conversion: near zero
- PLL ensures zero dropout, even at more than 100 ns jitter
- Digital Bitclock PLL for trouble-free varispeed ADAT operation
- Supported sample rates with external clocking (SPDIF): 28 kHz up to 200 kHz
- Supported sample rates with external clocking (ADAT): 40 kHz up to 49 kHz
- Internal clocks: 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176,8 kHz, 192 kHz
Digital I/O
- Digital input coaxial ground-free transformer coupled
- Formats: optical (TOSLINK), RCA (SPDIF, AES/EBU compatible)
- Format Consumer SPDIF according to IEC 60958
- Format Professional according to AES3-1992 Amendment 4
SPDIF coaxial
- RCA, according to IEC 60958
- High-sensitivity input stage RCA: < 0.2 Vpp input level
- Output voltage RCA Consumer 0.7 V, Professional 1.4 V
- Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF optical
- 1 x optical, according to IEC 60958
- Sample rate 28 kHz up to 200 kHz
ADAT
- TOSLINK
- Standard: 8 channels 24 bit, up to 48 kHz
- Double Speed (S/MUX): 4 channels 24 bit 96 kHz
- Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz
General
- Included power supply: external switching PSU, 100 – 240 V AC, 2 A, 24 Watts
- Idle power consumption: 5,2 W (430 mA @ 12V)
- Max. power consumption: 10 Watts (830 mA @ 12 V)
- Dimensions (WxHxD): 215 x 44 x 130 mm (8.5″ x 1.73″ x 5.1″)
- Weight: 900 g ( 2.0 lbs)
- Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
- Relative humidity: < 75%, non condensing
