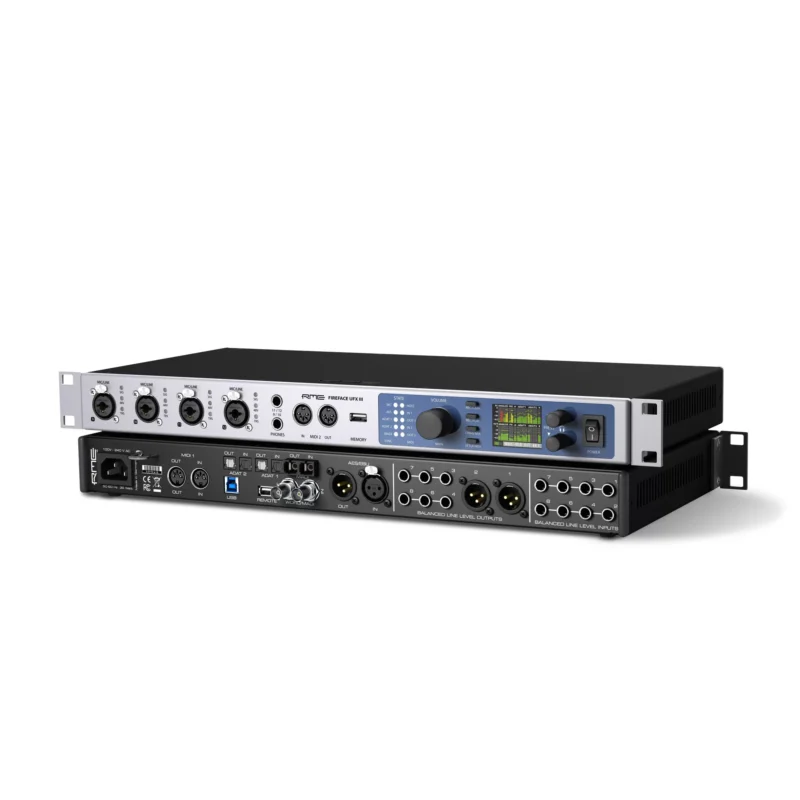

RME Fireface UFX III višekanalni audio intefejs

Opis

Novi, do sada najpotentniji Fireface interfejs iz RME

188 kanala, 24-bit/192kHz, USB 3 audio interfejs

Fireface UFX III je osmišljen da bude centar višekanalnog studija koji bez problema opslužuje 94 ulazna i 94 izlazna kanala.  Njegova vrsna fleksibilnost, kompatibilnost i dodatak DURec (Direct USB snimanje) uz poznatu RME minimalnu latenciju sa savršenim drajverima, garantuje nepogrešiv rad u bilo kojim uslovima.

Napakovan je profesionalnim dodacima, poput SteadyClock FS, MADI I/O (64 kanala), moćnim DSP procesingom, USB 3.0 (punih 94 ulaz/izlaz kanala), TotalMix FX, Direct USB snimanje i Advanced Remote Control USB podrška (dostupma posebno), Fireface UFX III alat zahtjevan od profesionalaca za višekanalna snimanja, miksanje i mastering.

Fireface UFX III je zasnovan na novorazvijenom analognom i digitalnom RME dizajnu. Dok analogni sklop krase DC-coupled izlazi punog frekvencijskog opsega tu su i novi AD i DA konverteri sa THD+N poboljšanjem izobličenja signala. I digitalni sklop takođe daje zanimljive High-Tech dodatke.

Nove performanse i unapređenja

Fireface UFX III je donio znatna poboljšanja u svojoj porodici interfejsa. Pobolšana je AD/DA konverzija, tu je najsavremenija SteadyClock FS tehnologija koja omogućava kristalno čistu Jitter-free reprodukciju zvuka. Njegova integrisana četiri mikrofonska pretpojačala daju još preciznije snimanje sa Gain pojačanjem koje će pogurati najtromije dinamičke mikrofone. USB 3.0 protokol sa USB-C povezivanjem je upotrebljeno za buduću univerzalnu kompatibilnost.

Stvoren za visoku produkciju

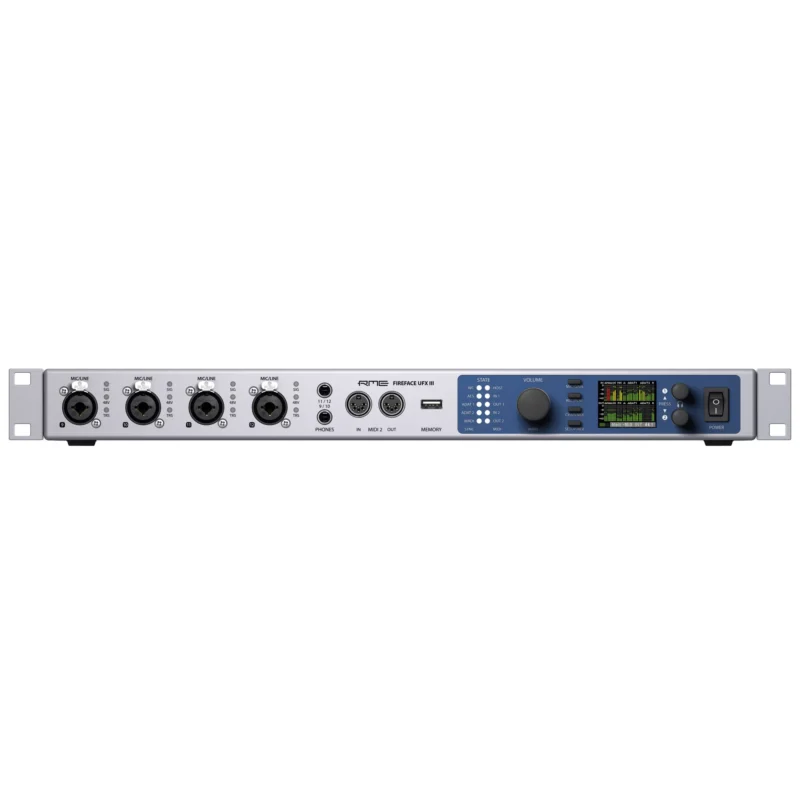

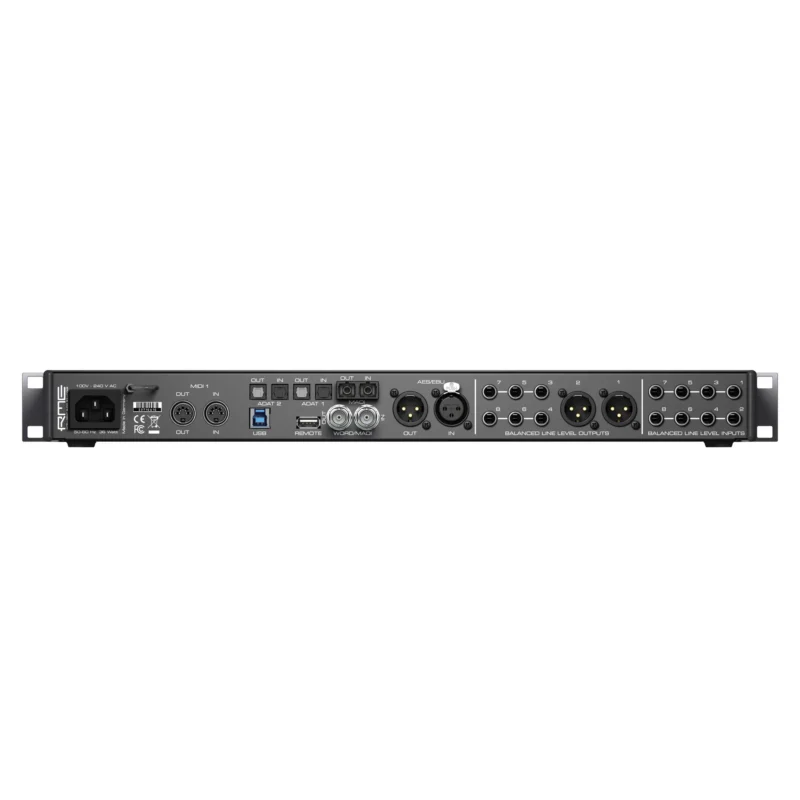

Svi koji se nalaze u visokoj produkciji masivnih zvučnih projekata će biti zainteresovani za karakteristike kojima RME Fireface UFX III raspolaže. Četiri mic/line pretpojačala i osam TRS line ulaza zaokružuju ponudu direktnih analognih konekcija koje su dopunjene sa dva XLR izlaza i šest TRS izlaza. Digitalna sekcija daje optičke ADAT i AES/EBU ulaze i izlaze koji obezbjeđuju ogroman prostor za proširenje. Dobijate i 128 kanala MADI I/O za zahtjevne i velike instalacije. Dual dupli izlazi za monitoring slušalicama i MIDI I/O zaokružuju opširni potencijal Fireface UFX III.

Moćan interni DSP procesing

Fireface UFX III je napakovan obilatom DSP snagom u internom procesoru. Sadrži poznati RME TotalMix FX interni miker koji daje potpuno nezavisno rutiranje signala svih ulaznih kanala i plejbek kanala na bilo koji fizički izlaz. Nezavisni stereo podmiksevi i fantastična Control Room sekcija daje napredne mogućnosti monitoringa i besprijekornu fleksibilnost rutiranja signala. Dobijate EQ na svih 188 kanala, dinamički procesing na 188 kanala, reverb i delay sabirnice i Automatic Mic Gain alat. Na sve to dobijate univerzalnu kontrolu nad Fireface UFX III sa TotalMix Remote softverom za PC, Mac i iOS uređaje.

Specifikacija

Analogno

AD, Line In ulazi 1-8, nazad

• Input: 6.3 mm TRS, electronically balanced
• Signal to Noise ratio (SNR) @ LoGain: 116 dB (AES17), 118 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 115 dB (AES17), 117 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 8.9 Hz – 20.4 kHz
• Frequency response @ 96 kHz, -0.5 dB: 4.3 Hz – 45.2 kHz
• Frequency response @ 192 kHz, -1 dB: 3 Hz – 89 kHz
• Filter: Short Delay Sharp, 5 / 5 / 6 samples delay
• THD @ -1 dBFS: < -120 dB, < 0.0001 %
• THD+N @ -1 dBFS: < -110 dB, < 0.00032 %
• Channel separation: > 110 dB
• Maximum input level: +19 dBu
• Input: 6.3 mm TRS jack, electronically balanced
• Input impedance @ 1 kHz: 10 kOhm unbalanced, 10.6 kOhm balanced
• Input sensitivity switchable between Lo Gain and +4 dBu
• Input level for 0 dBFS @ Lo Gain: +19 dBu
• Input level for 0 dBFS @ +4 dBu: +13 dBu
• Variable digital gain: 0 to +12 dB
• Minimum level for 0 dBFS: +1 dBu, -1.2 dBV

Mikrofonski ulazi  9-12, naprijed

Kao AD, ali:

• Input: XLR, electronically balanced
• Input impedance @ 1 kHz: 3.4 kOhm
• Signal to Noise ratio (SNR) @ 0 dB Gain: 117 dB (AES17), 119.5 dBA
• THD+N @ -1 dBFS, Gain 20 dB: < -110 dB, < 0.00032 %
• Frequency response @ 44.1 kHz, -0.1 dB: 10.7 Hz – 20.3 kHz
• Frequency response @ 96 kHz, -0.5 dB: 5.1 Hz – 45.0 kHz
• Frequency response @ 192 kHz, -1 dB: 3.5 Hz – 88 kHz
• EIN @ 60 dB Gain, 150 Ohm, A-Weighted: -129.8 dBu
• Gain range: 75 dB
• Maximum input level, Gain 0 dB: +18 dBu
• Maximum input level, Gain 75 dB: -57 dBu
• CLIP LED: 0 dBFS
• SIG LED: -60 dBFS

Instrument In ulazi 9-12, naprijed

Kao AD, ali:

• Input: 6.3 mm TS jack, unbalanced
• Input impedance @ 1 kHz: 1 MOhm
• Signal to Noise ratio (SNR): 116 dB (AES17), 118.5 dBA
• Frequency response @ 44.1 kHz, -0.5 dB: 2.4 Hz – 20.0 kHz
• Frequency response @ 96 kHz, -1 dB: 1.6 Hz – 28 kHz
• Frequency response @ 192 kHz, -3 dB: 0.8 Hz – 54 kHz
• THD+N @ -1 dBFS, Gain 20 dB: < -107 dB, < 0.00045 %
• Gain range: 42 dB
• Maximum input level, Gain 8 dB: +21 dBu
• Maximum input level, Gain 50 dB: -21 dBu

DA, Line Out izlazi 3-8, nazad

• Output: 6.3 mm TRS jack, servo-balanced
• Signal to Noise ratio (SNR) @ HiGain: 116.5 dB (AES17), 118.5 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 116 dB (AES17), 118 dBA
• Signal to Noise ratio (SNR) @ -10 dBV: 107 dB (AES17), 109 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
• Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.6 kHz
• Frequency response @ 192 kHz, -1 dB: 0 Hz – 77.5 kHz
• THD+N: < -110 dB, < 0.00032 %
• Channel separation: > 110 dB
• Output level switchable Hi Gain, +4 dBu, -10 dBV
• Output level at 0 dBFS @ Hi Gain: +19 dBu
• Output level at 0 dBFS @ +4 dBu: +13 dBu
• Output level at 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu)
• Output impedance: 75 Ohm

DA – Stereo Monitor izlaz XLR (1-2)

As DA, but:

• Output: XLR, balanced
• Output level switchable 24 dBu, Hi Gain, +4 dBu, -10 dBV
• Output level at 0 dBFS @ 24 dBu: +24 dBu
• Output level at 0 dBFS @ Hi Gain: +19 dBu
• Output level at 0 dBFS @ +4 dBu: +13 dBu
• Output level at 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu)
• Output impedance: 150 Ohm

DA – Stereo Monitor Phones izlaz (9-12)

As DA, but:

Output: 2 x 6.3 mm TRS stereo jack, unbalanced
Maximum output level at 0 dBFS, High: +19 dBu
Maximum output level at 0 dBFS, Low: +2 dBV
Max power per channel @ 32 Ohm load, 0.02% THD: 200 mW (2.5 Vrms, +10 dBu)
Signal to Noise ratio (SNR) @ High: 116.5 dB (AES17), 118.5 dBA
Signal to Noise ratio (SNR) @ Low: 115 dB (AES17), 117 dBA
Output impedance: 2 Ohm

MIDI

• 2 x MIDI I/O via 5-pin DIN jacks
• Galvanically isolated by optocoupled input
• Hi-speed mode: Jitter and response time typically below 1 ms
• Separate 128 byte FIFOs for input and output
• 2 x MIDI I/O via MADI
• Invisible transmission via User bit of channel 56 (up to 48 kHz)
• Invisible transmission via User bit of channel 28 (up to 96 kHz)

Digitalno

Clocks: Internal, ADAT, AES, SPDIF, word clock
Jitter suppression: > 50 dB (> 1 Hz)
Effective clock jitter influence on AD and DA conversion: near zero
PLL ensures zero dropout, even at more than 100 ns jitter
Digital Bitclock PLL for trouble-free varispeed ADAT operation
Supported sample rates: 28 kHz up to 200 kHz

Digitalni ulazi

MADI

• Optical via FDDI duplex SC connector
• 62.5/125 and 50/125 compatible
• Coaxial via BNC (Word Clock input), 75 Ohm
• High-sensitivity input stage (< 0.2 Vpp)
• Accepts 56 channel and 64 channel mode, plus 96k Frame
• Standard: up to 64 channels 24 bit 48 kHz
• S/MUX: up to 32 channels 24 bit 96 kHz
• S/MUX4: up to 16 channels 24 bit 192 kHz
• Lock range: 25 kHz – 54 kHz
• Jitter suppression: > 50 dB (> 1 Hz)

AES/EBU

• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• High-sensitivity input stage (< 0.3 Vpp)
• SPDIF compatible (IEC 60958)
• Accepts Consumer and Professional format
• Lock range: 27 kHz – 200 kHz
• Jitter suppression: > 50 dB (> 1 Hz)

ADAT optika

• 2 x TOSLINK, format according to Alesis specification
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz
• Bitclock PLL ensures perfect synchronisation even in varispeed operation
• Lock range: 31.5 kHz – 50 kHz
• Jitter suppression: > 50 dB (> 1 Hz)

SPDIF optika (ADAT 2)

• 1 x optical, according to IEC 60958
• Accepts Consumer and Professional format
• Lock range: 27 kHz – 200 kHz
• Jitter suppression: > 50 dB (> 1 Hz)

Word Clock

BNC

• Internal termination 75 Ohm switchable
• Automatic Double/Quad Speed detection and internal conversion to Single Speed
• SteadyClock guarantees super low jitter synchronization even in varispeed operation
• Not affected by DC-offsets within the network
• Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
• Overvoltage protection
• Level range: 1.0 Vpp – 5.6 Vpp
• Lock Range: 27 kHz – 200 kHz
• Jitter suppression: > 50 dB (> 1 Hz)

Digitalni izlazi

MADI

• Optical via FDDI duplex SC connector
• 62.5/125 and 50/125 compatible
• Coaxial via BNC (Word Clock input), 75 Ohm
• High-sensitivity input stage (< 0.2 Vpp)
• Accepts 56 channel and 64 channel mode, plus 96k Frame
• Standard: up to 64 channels 24 bit 48 kHz
• S/MUX: up to 32 channels 24 bit 96 kHz
• S/MUX4: up to 16 channels 24 bit 192 kHz
• Lock range: 25 kHz – 54 kHz
• Jitter suppression: > 50 dB (> 1 Hz)

AES/EBU

• XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Output level Professional 4.5 Vpp, Consumer 2.6 Vpp
• Format Professional according to AES3-1992 Amendment 4
• Format Consumer (SPDIF) according to IEC 60958
• Single Wire mode, sample rate 28 kHz up to 200 kHz

ADAT

• 1 x TOSLINK, format according to Alesis specification
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz

SPDIF optika (ADAT 2)

1 x optical, according to IEC 60958
Accepts Consumer and Professional format
Lock range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)

Word Clock

BNC

• Max. output voltage: 5 Vpp
• Output voltage @ 75 Ohm termination: 4.0 Vpp
• Output impedance: 10 Ohm
• Frequency range: 27 kHz – 200 kHz

Generalno

• Power supply: Internal switching PSU, 100 – 240 V AC, 36 Watts
• Idle power consumption: 19 Watts
• Typical power consumption: 22-25 Watts
• Dimensions including rack ears (WxHxD): 483 x 44 x 210 mm (19” x 1.73” x 8.5”)
• Dimensions without rack ears (WxHxD): 440 x 44 x 210 mm (17.3” x 1.73” x 8.3”)
• Total depth: 240 mm (9.4”)
• Weight: 3 kg ( 6.6 lbs)
• Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
• Relative humidity: < 75%, non condensing
