Akcija!

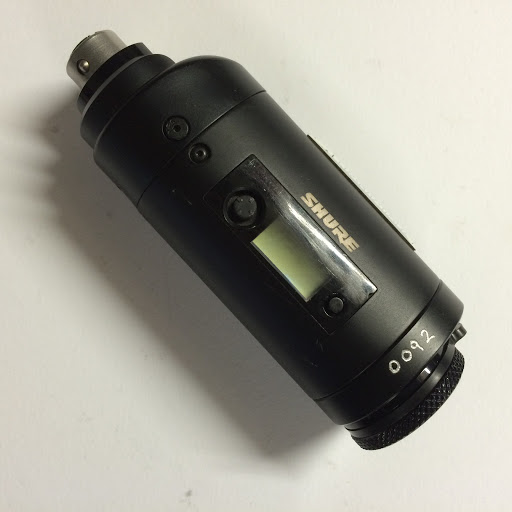

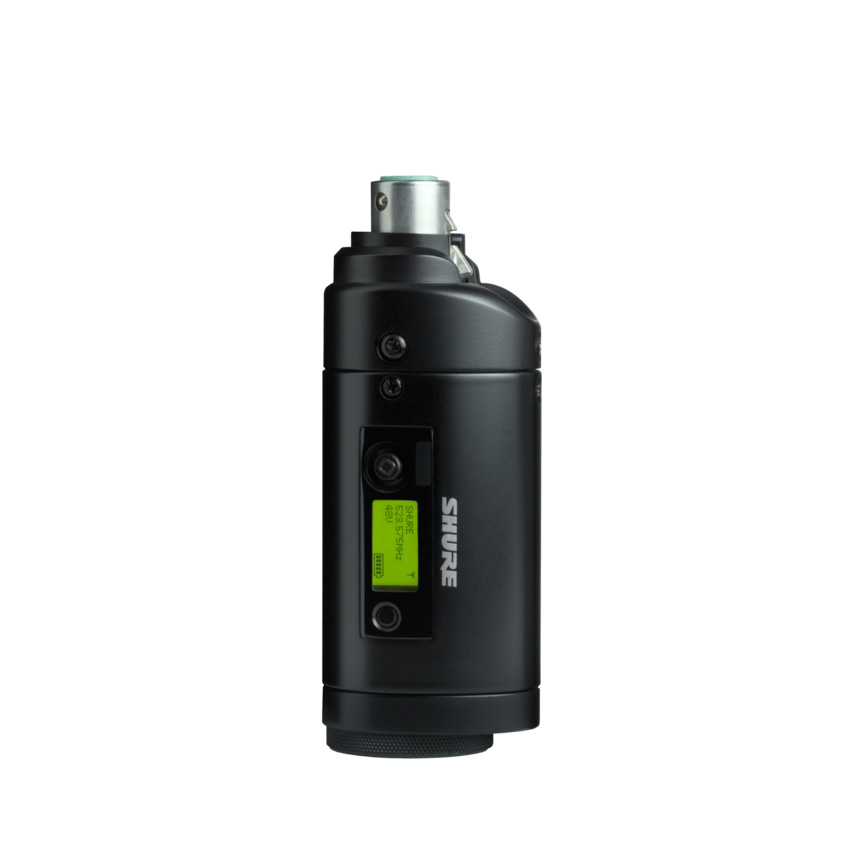

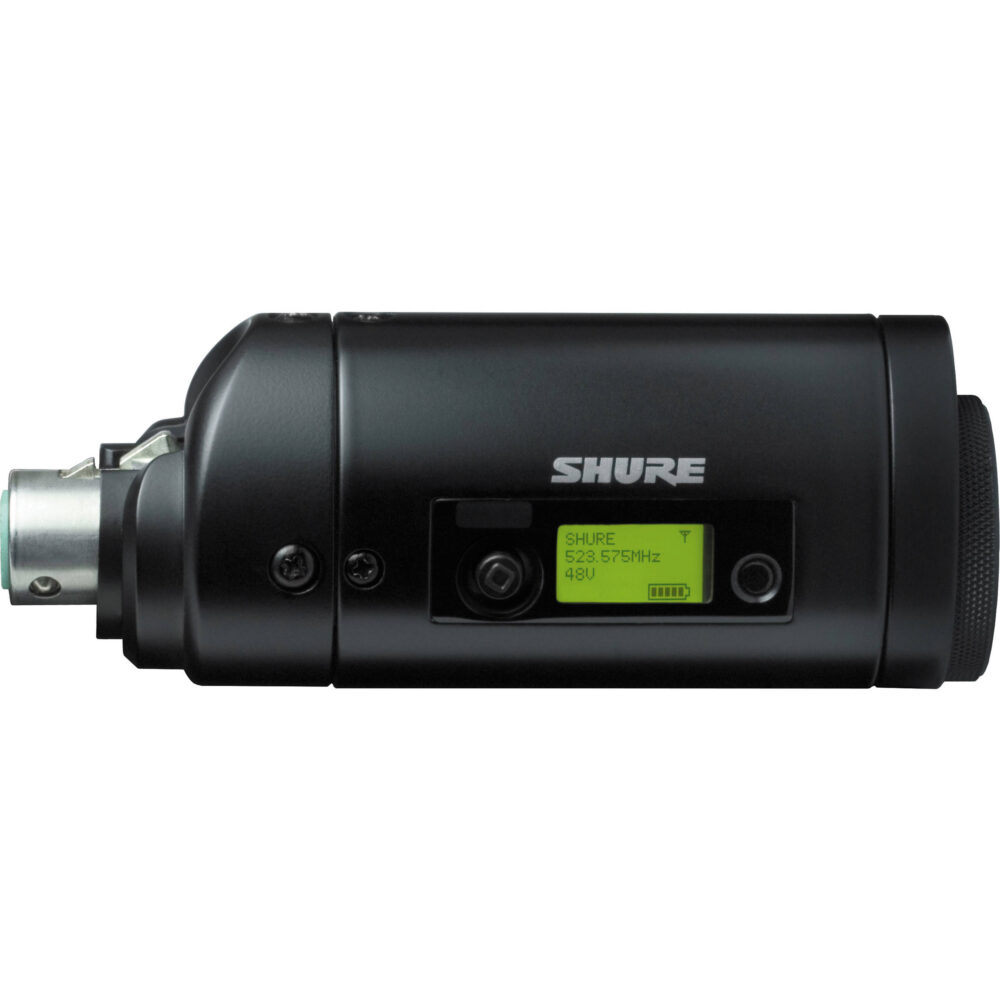

Shure UR3 transmiter

1.220,00KM

UR 3 je vrhunski transmiter iz Shure UHF-R serije.

Opis

Sjajne izrade, velikih mogućnosti, zajedno sa vašim omiljenim mikrofonom i UHF-R UR 4 reciever-om, imaćete komplet vrhunske kvalitete.

Modulation
FM (45 kHz max. deviation)

Frequency Range
470–952 MHz (depending on region)

Tuning Bandwidth
Up to 80 MHz (depending on region)

Antenna
Dipole, UR3 housing and attached microphone form the antenna

Carrier Frequencies
Up to 3200, tunable in steps of 25 kHz (depending on region)

RF Power Output
Selectable 10 mW or 50 mW maximum, depending on region

Power Requirements
Two (2) 1.5V AA alkaline

Battery Life
10 Hours (alkaline) with no phantom power @ 10 mW, typical (frequency band dependent)
4 Hours (alkaline), with 48 V phantom power @ 50 mW, typical (frequency band dependent)

Gain Adjustment Range
-10 to +20 dB, MIC or LINE input setting

Pilot Tone
32 kHz

Frequency Stability
± 0.0015%

Spurious Radiation
75 dB below carrier (typical)

Equivalent Input Noise
-127.0 dBV, A-weighted (audio front end)

Maximum Audio Input level
+24 dBV (LINE input, 0 dB gain)
-21 dBV (MIC input, 0 dB gain)

Differential Input Impedance
6 k? LINE input setting
3 k? MIC input setting

System Frequency Response
35 Hz–17 kHz, (+1.5 dB, -3 dB)
Note: Overall system frequency response depends on the microphone element and receiver.

High Pass Filter
Two-pole (12 dB per octave), selectable cut off frequency from 40 Hz to 240 Hz

System THD+N
<0.3%, 1 kHz sine wave @ 6dB below clip (LINE and MIC input setting)

System Dynamic Range
107 dB typical, Line Mode, A-weighted through a UR4
105 dB typical, Mic Mode, A-weighted through a UR4
102 dB typical, Line Mode, A-weighted through a UR5
100 dB typical, Mic Mode, A-weighted through a UR5

Audio Input Jack
3-Pin female XLR
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold

Phantom Power
+48 V ± 4 V, 7 mA maximum
+12 V ± 1 V, 7 mA maximum

Weight
196 g (6.9 oz) with AA batteries

Dimensions
117 mm x 36 mm x 43 mm, H x W x D

Brand

Shure
