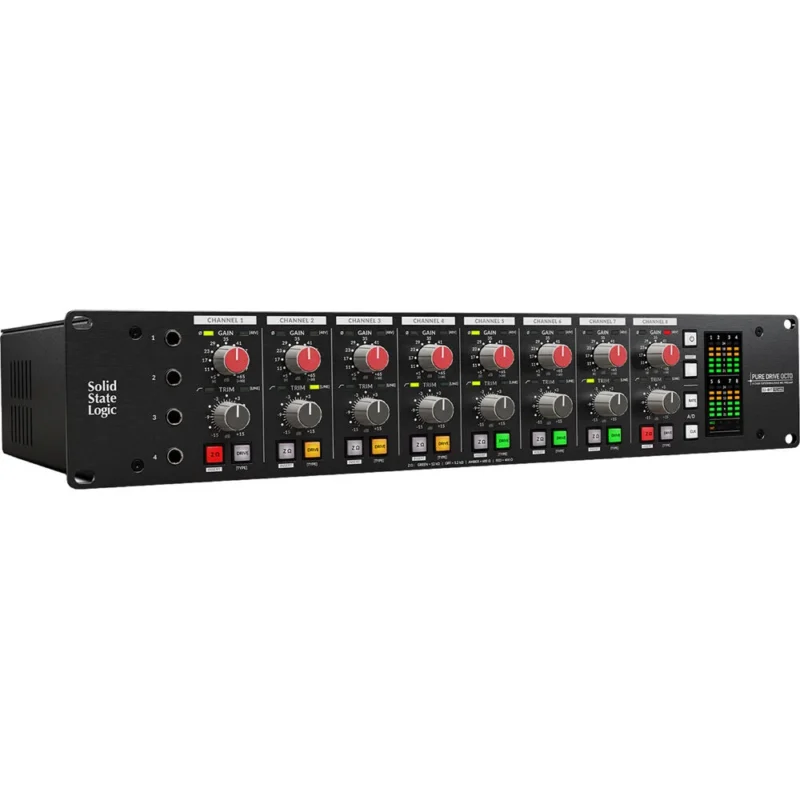

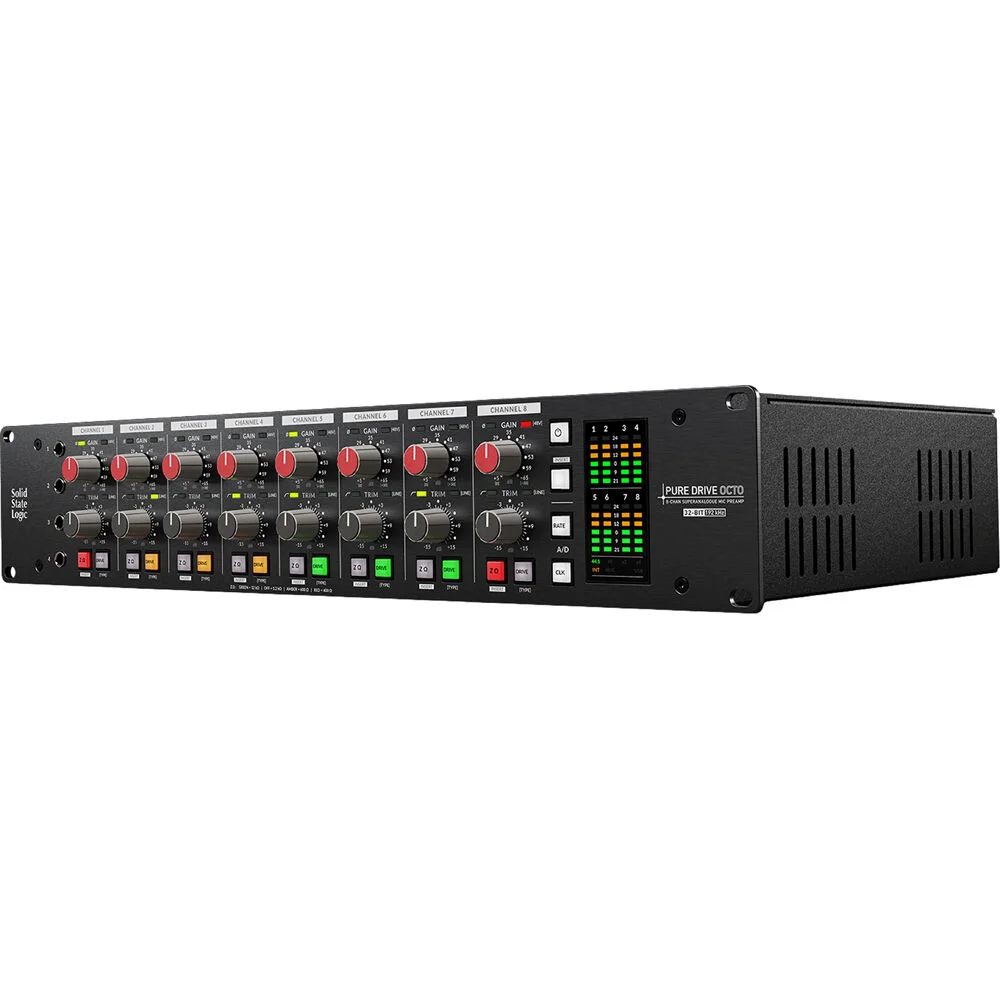

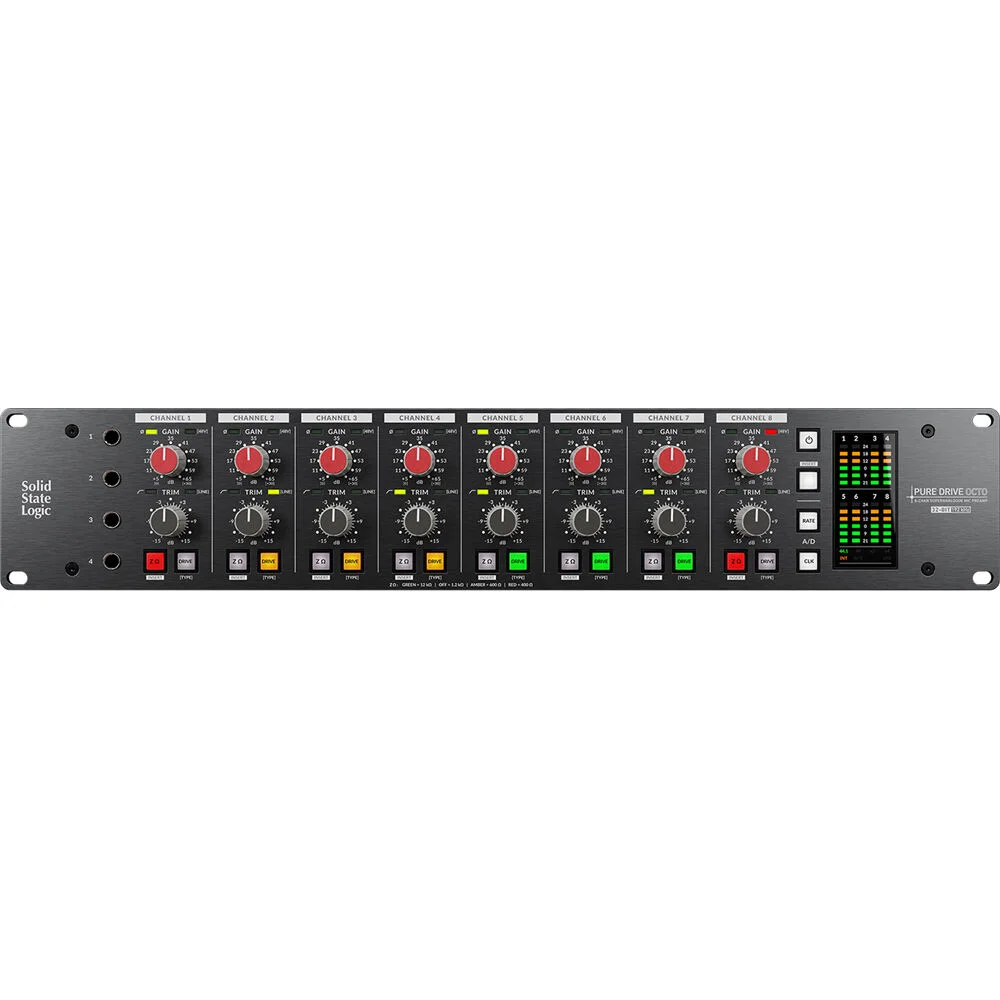

Solid State Logic PURE DRIVE OCTO preamp

Opis

Osam originalnih SSL pretpojačala u jednom 2U rekovskom kućištu

Solid State Logic PureDrive Octo je visokokvalitetno mikrofonsko pretpojačalo sa osam kanala besprekornog analognog procesinga. Zahvaljujući SuperAnalog PureDrive tehnologiji daje transparentnu i detaljnu reprodukciju zvuka, što ga čini idealnim za profesionalni studio. Sa mogućnošću do 192 kHz / 32 bit konverzije i do +65 dB Gain pojačanja, omogućava preciznu kontrolu nad ulaznim nivoima signala za najfinije rezultate snimanja.

Mikrofonski, Line i instrumentalni ulazi

Nudi različite opcije ulaza – mikrofonske, linijske i instrumentalne ulaze, kao i balansirane analogne izlaze i slanja za insert signala, pa tako omogućava svestrane opcije povezivanja sa raznom studijskom opremom. Zahvaljujući kombinaciji Clean, Classic i Asymmetric drive režima rada, PureDrive Octo pruža fleksibilnost u oblikovanju karaktera snimljenih signala. Takođe u tome će pomoći i podesiva impedansa ulaznog signala na 400Ω, 600Ω, 1200Ω ili 12kΩ. Kompatibilan je sa ADAT, AES i USB konekcijama, takođe može da se koristi kao 8×24 USB zvučna karta što proširuje njegovu upotrebljivost u različitim snimateljskim postavkama.

Ključne karakteristike

8 SuperAnalog PureDrive pretpojačala za mikrofone
Do 192 kHz / 32-bit konverzija
Do +65 dB Gain pojačanja
Trim Control podešavanje u 31 korak
Clean, Classic Drive & Asymmetric Drive
Ulazna impedansa 400Ω, 600Ω, 1200Ω ili 12kΩ
Ulazi za mikrofon, Line i instrumente
Balansirani analogni izlazi/Insert sends
XLR, TRS i D-Sub konekcije
ADAT, AES i USB konekcije
Režim 8×24 USB zvučne karte

Specifikacija

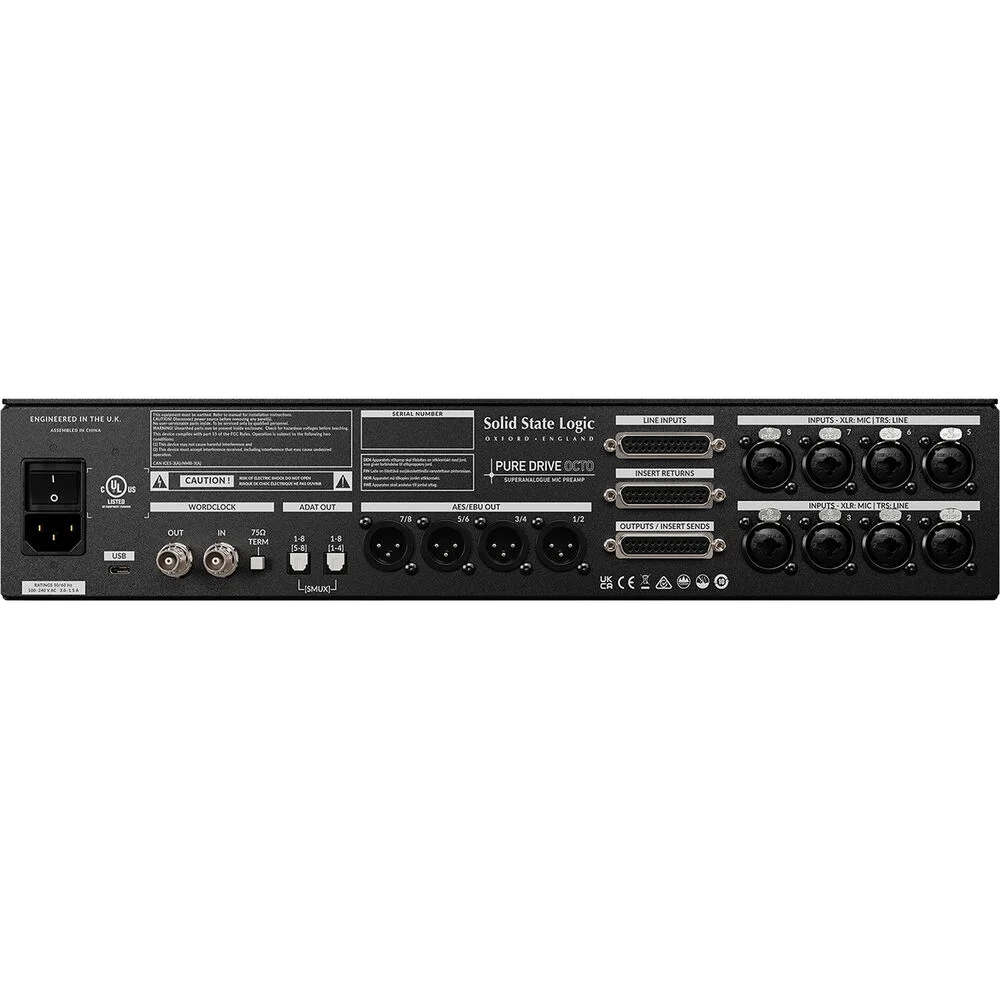

Inputs / Outputs
USB I/O 1 x USB-C Female Input/Output
Audio I/O 8x Combo XLR-1/4" Line/Mic Input
4x 1/4" TRS Hi-Z/Instrument Input (Front Panel)
1x DB-25 Line Input
1x DB-25 Line Input (Insert Return)
1x DB-25 Line Output (Insert Send)
Digital I/O AES/EBU Outputs: 4 x XLR (Male)
ADAT Output and ADAT Link In: 2 x Optical TOSLINK Port
Wordclock Input and Output: 2 x BNC
Impedance Mic In to Insert Send
Input: 400, 600, 1200, or 12,000 Ohms
Output: 70 Ohms

Line In to Insert Send: <22 Kilohms

Hi-Z to Insert Send: 1 Megohm

Insert Return to ADC: 10 Kilohms
Gain Mic In to Insert Send: 4.8 to 65.5 dB ± 0.1 dB
Gain Matching: < 0.08 dB

Line In to Insert Send: -0.4 to 30 dB ± 0.1 dB
Gain Matching: <0.08 dB

Hi-Z to Insert Send: 10.9 to 41.3 dB ± 0.1 dB
Gain Matching: <0.08 dB
Noise Floor Mic In to Insert Send: <-97.3 dBu

Line In to Insert Send: -89.7 dBu Typical

Hi-Z to Insert Send: 11 dB, Unweighted, 20 Hz to 20 kHz, 150R Termination: < 86 dBu Typical
EIN Mic In to Insert Send: 65 dB, A-weighted, 20 Hz to 20 kHz, 150R Termination: -130 dBu Typical, -129 dBu Nominal
THD+N Mic In to Insert Send: < -92 dB / 0.0025 % (17 dB, 20 dBu out, 1 kHz)

Line In to Insert Send: 0 dB, Unweighted, 20 Hz to 20 kHz, 150R Termination: -89.6 dB / 0.0033% Typical

Insert Return to ADC:-105 dB / 0.0005% Typical
Frequency Response Mic In to Insert Send: 20 to 20 kHz, Any Gain (± 0.2 dB)

Insert Return to ADC: ± 0.035 dB, -3 dB Low Roll-Off < 5 Hz
Crosstalk Mic In to Insert Send
Aggressor 15 dBu 50 Hz In, 5 dB Gain, 20 dBu Out; Adjacent Channels 150R Terminator, 35 dB Gain: < -108 dB
Aggressor 15 dBu 1 kHz In, 5 dB Gain, 20 dBu Out; Adjacent Channels 150R Terminator, 35 dB Gain: < -105 dB
Aggressor 15 dBu 10 kHz In, 5 dB Gain, 20 dBu Out; Adjacent Channels 150R Terminator, 35 dB Gain: < -81 dB

Insert Return to ADC
23.9 dBu In, 20 Hz to 20 kHz, 1 Channel Driven, All Other Channels 150R Terminated: < 105 dB
23.9 dBu In, 1 kHz, 1 Channel Driven, All Other Channels 150R Terminated: < 115 dB
Maximum Input Level Mic In to Insert Send: >21.5 dBu (At Minimum Gain)

Line In to Insert Send: 26.5 dBu (At Minimum Gain)

Hi-Z to Insert Send: >15.5 dBu (Unbalanced, Minimum Gain)
A/D Conversion Insert Return to ADC
ADC Line Up: 24 dBu
Dynamic Range Insert Return to ADC: 119 dB Typical
Filter Trim and High-Pass Filter (HPF)
Trim Gain Matching: < 0.04 dB
HPF Frequency Tolerance: 5%
Wireless
Mobile App Compatible No
Power
Power Source AC Input (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Mounting Side: 2 x Rack Ears
Cable Length Not Specified by Manufacturer
Dimensions 19 x 11.9 x 3.5" / 482.6 x 302.8 x 88.1 mm (Chassis Only)
Weight 13 lb / 5.9 kg
